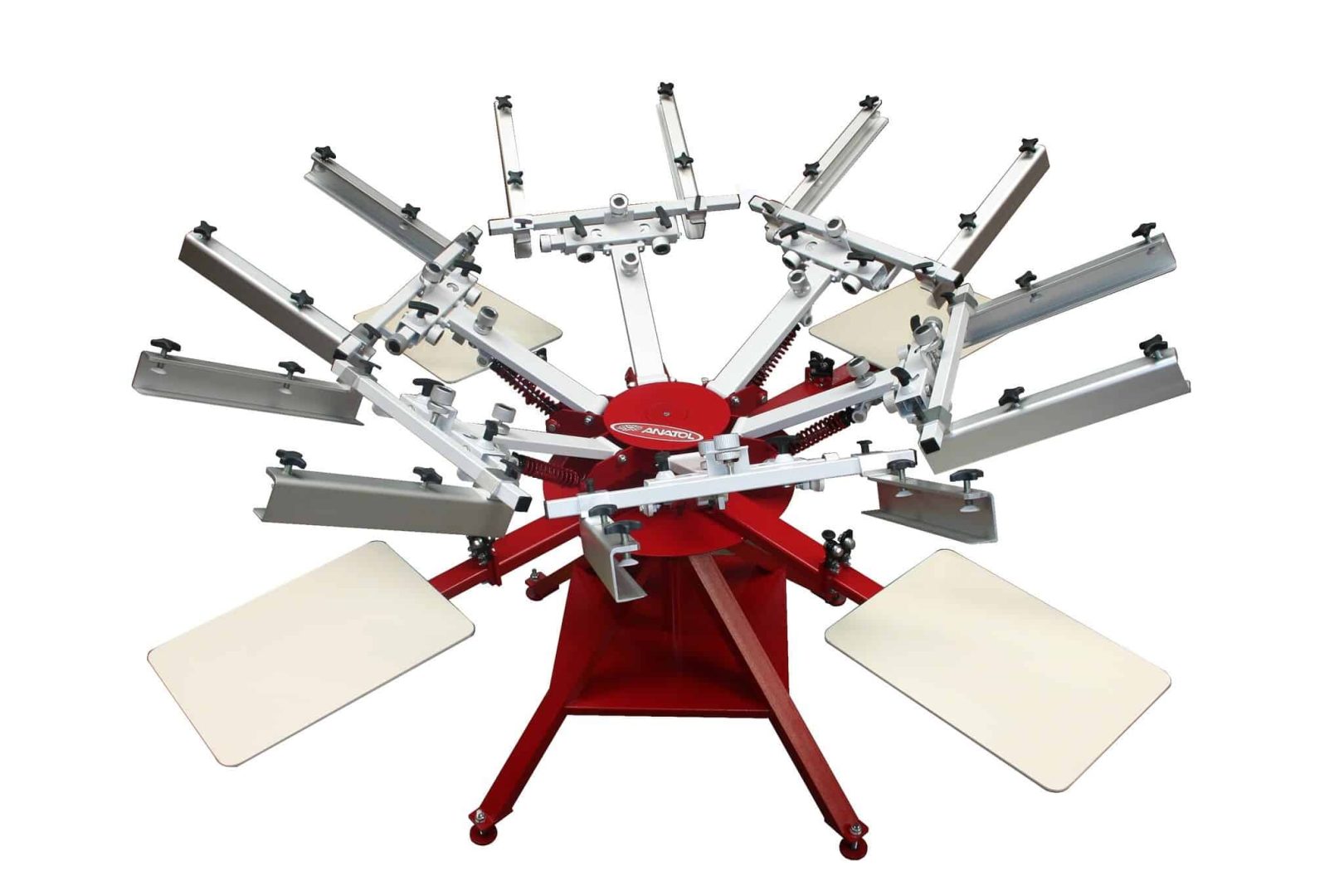

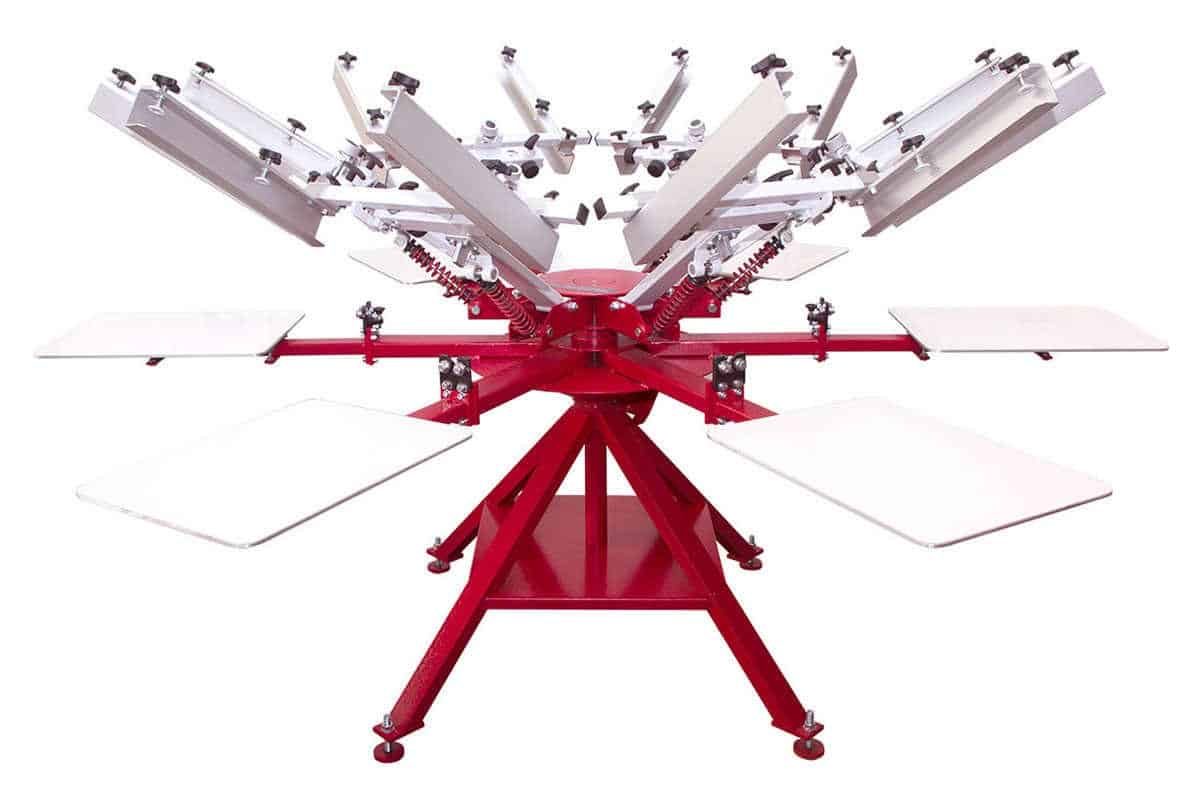

Ergonomically designed, the Lighting printing press is easy to use with 100% tool-less setups and operation.

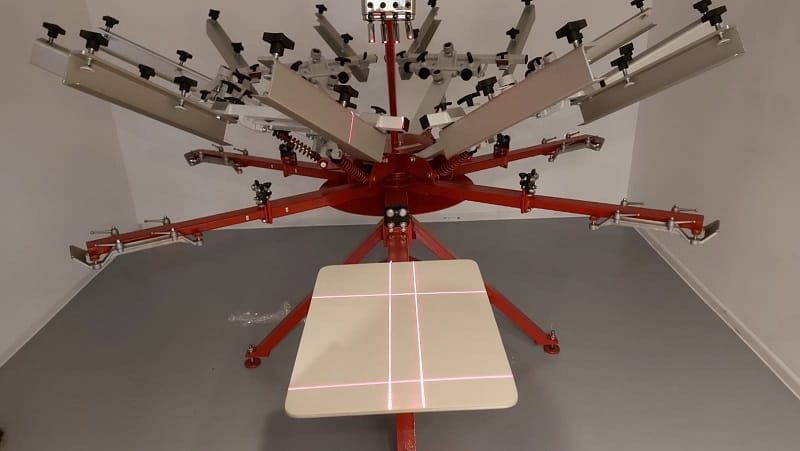

It comes standard with quality features including the dual bearing system for smooth motion t-shirt printing, all day long. The laser alignment system ensures quick, easy apparel alignment utilising four independently-adjustable straight red lasers. Strong yet lightweight, the Lightning Screen Printing Press is simple to both set up and move around your printing shop.
| Colours/Stations | Diameter | Max Screen Size | Max Print Size | Standard Pallet Size |
| 4/4 | 9’6″ (290 cm) with screens in |
26″ x 36″ 66 cm x 91 cm |
21″ x 28″ 53 cm x 71 cm |
16″ x 22″ 41 cm x 56 cm |
| 6/4 | 9’6″ (290 cm) with screens in |
26″ x 36″ 66 cm x 91 cm |
21″ x 28″ 53 cm x 71 cm |
16″ x 22″ 41 cm x 56 cm |
| 6/6 | 9’6″ (290 cm) with screens in |
26″ x 36″ 66 cm x 91 cm |
21″ x 28″ 53 cm x 71 cm |
16″ x 22″ 41 cm x 56 cm |
| 8/4 | 10’10” (330 cm) with screens in |
26″ x 36″ 66 cm x 91 cm |
21″ x 28″ 53 cm x 71 cm |
16″ x 22″ 41 cm x 56 cm |
| 8/8 | 10’10” (330 cm) with screens in |
26″ x 36″ 66 cm x 91 cm |
21″ x 28″ 53 cm x 71 cm |
16″ x 22″ 41 cm x 56 cm |
With Gauged three-point micro-registration, movement is adjustable on three points (Front to Back, Side to Side and Rotational). The Adjustable guided spring tension system provides smooth lift while the side screen clamps keep screens in registration. With all heads down printing on models 4s/4c, 6s/6c and 8s/8c, the Lightning has Off-contact and screen pitch adjustments on each print head.
Customise the Lightning press to suit your printing needs with a choice of quick release or slide style pallets. Each pallet comes standard with rubber-coated aluminum. With a four point pallet levelling system, the Lightning is available in either side or back clamp versions. It also includes swivel feet on the screen clamps to prevent moment while tightening.
Constructed with a heavy duty steel frame and double bearing registration locks to ensure top print quality on multi-colour jobs. The Lightning offers a small footprint, making it suitable for print shops of all sizes.
Get more out of your printing while saving time and improving accuracy during registration with the Anatol’s ARME registration system.
Compare the Lightning to the Anatol Thunder Press, their Industrial Grade Manual Press to determine which printing press is best for you.
Optional
Secure the pallet instantly with the flick of switch to ensure exact registration alignment. (Requires air compressor.)
