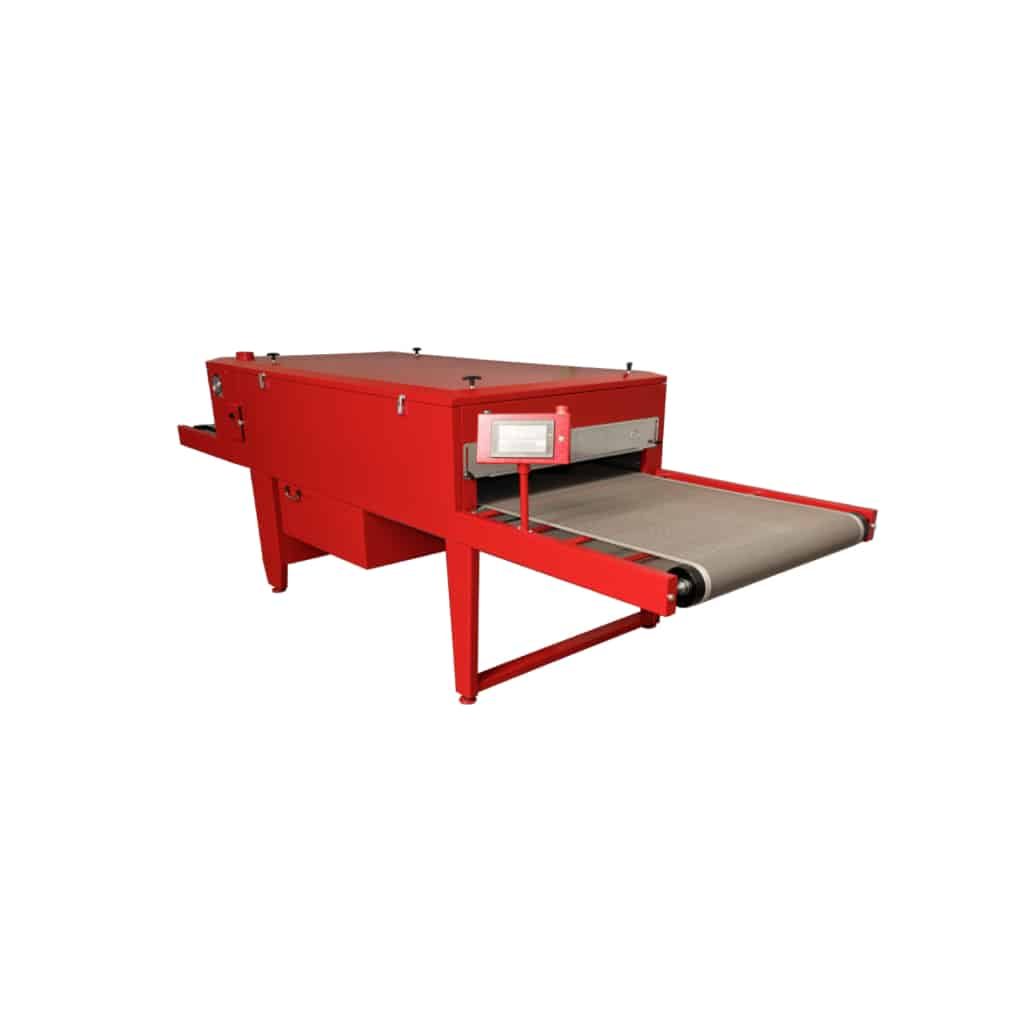

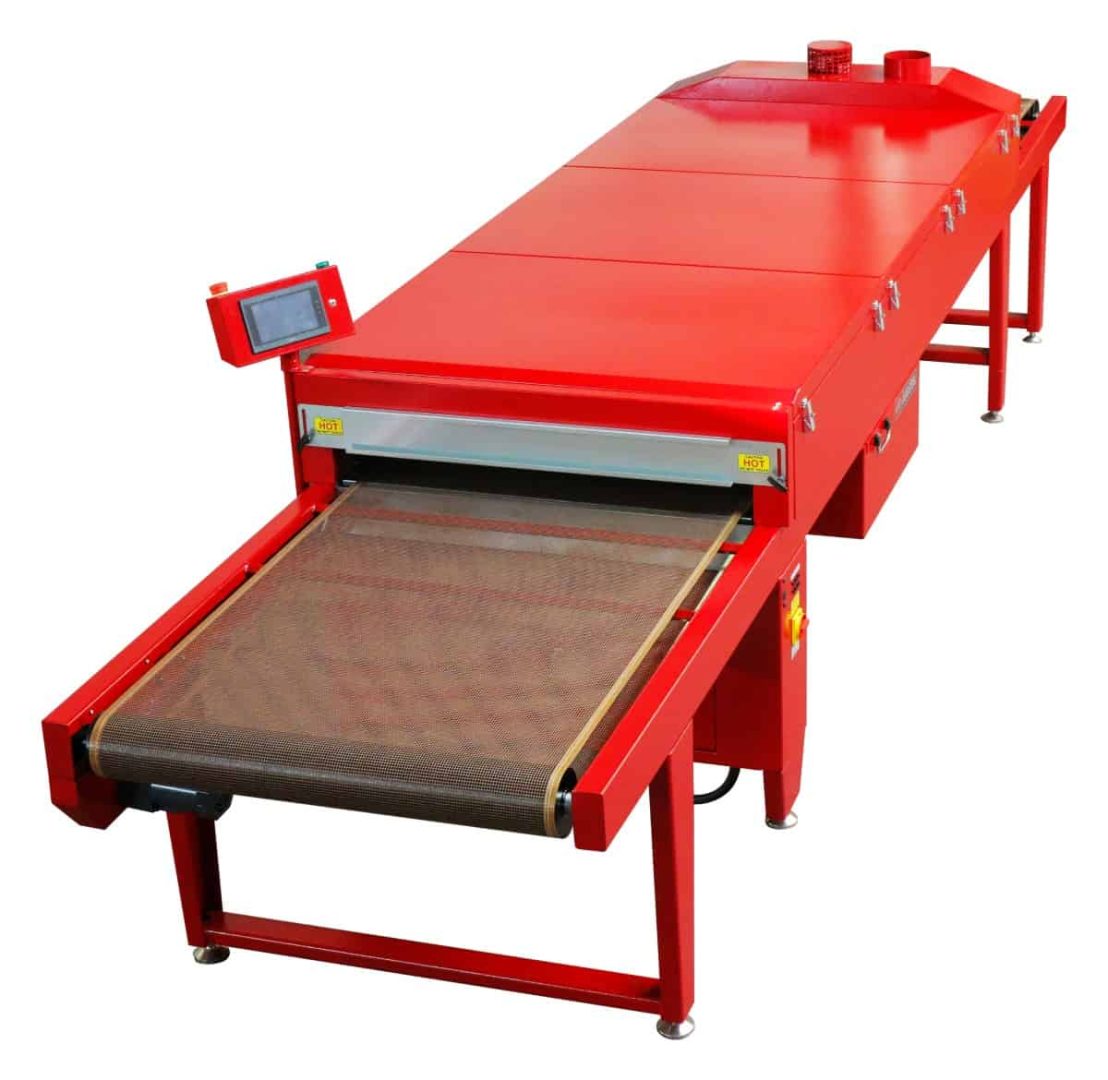

Anatol Solutions Ultra Electric Dryer

The Anatol Solutions Ultra electric dryer uses forced air to create an environment ideal for curing both water-based and plastisol inks.


Cure your garments quickly and efficiently with the Solutions Ultra Electric Dryer.


Intuitive, you can set a work schedule to program automatic start-up and cool down based on the day of the week. It can also save and recall up to 16 jobs for fast setups. The 7” touchscreen control panel allows you to set your desired cure time and the dryer will take care of the rest; automatically determining the correct belt speed. You can also view the temperature and energy consumption plots in real time.


With accurate Temperature control (to +/- 1°F) you can be assured of consistent, repeatable results. To avoid any issues, the Solutions Ultra is equipped with an overheating alarm to warn you when the dryer exceeds the temperature set by the user.


To provide effective curing of water-based inks, the 5” blower exchanges air in the chamber over 12 times per minute.


The Solutions Ultra Electric Dryer has both adjustable infeed/outfeed openings along with the ability to raise and lower the height of the heating elements.


Designed with safety in mind, the air cooled case keeps heat in and helps the dryer to stay cool to the touch.


Made to be durable and for constant repeated use, the Solutions Ultra has a double wall construction with heavy duty conveyor rollers and an industrial-grade AC motor.


Available in four sizes:


Model Belt Width Heat Chamber Overall Length Std Infeed/Outfeed Length Pieces per hour Electrical requirements
UED-3606-13000 92cm (36”) 183cm (6’0”) 3.33m 150cm 400-600 1 Ph, 208-230V, 50/60 Hz, 13kW, 64A
3 Ph, 208-230V, 50/60 Hz, 13kW, 37A
UED-3610-23400 92cm (36”) 288cm (9’6”) 5.88m 300cm 550-800 3 Ph, 208-230V, 50/60 Hz, 27.3kW, 72A
UED-4810-29250 122cm (48”) 288cm (9’6”) 5.88m 300cm 700-950 3 Ph, 208-230V, 50/60 Hz, 29.25kW, 83A
UED-6010-39000 152cm (60”) 288cm (9’6”) 5.88 300cm 900-1200 3 Ph, 208-230V, 50/60 Hz, 39kW, 110A


Optional Extras:

  • Custom dryer sizes available
  • Infeed/outfeed extensions per customer requirements
  • Outfeed cooling fan to boost ink cooling when substrate exits the heat chamber



Get pricing and availability now – contact Leapfrog Machinery.


For those, looking for a more cost economical dryer ideal for plastisol inks, take a look at the Anatol Solutions Dryer
