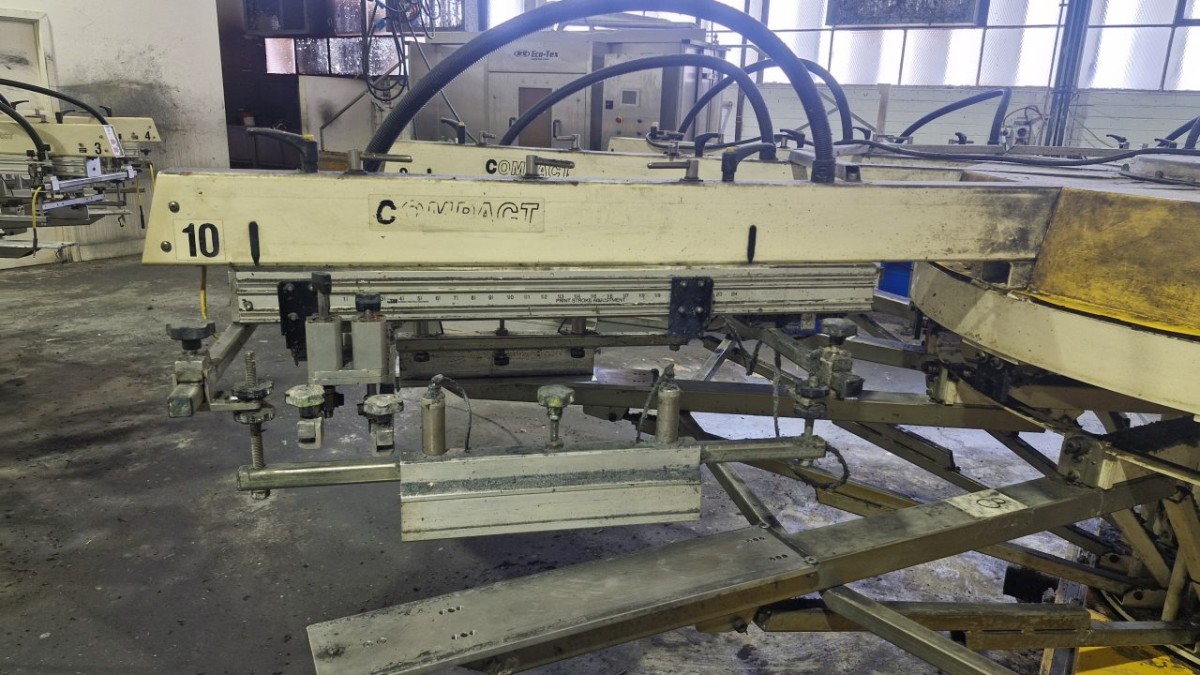

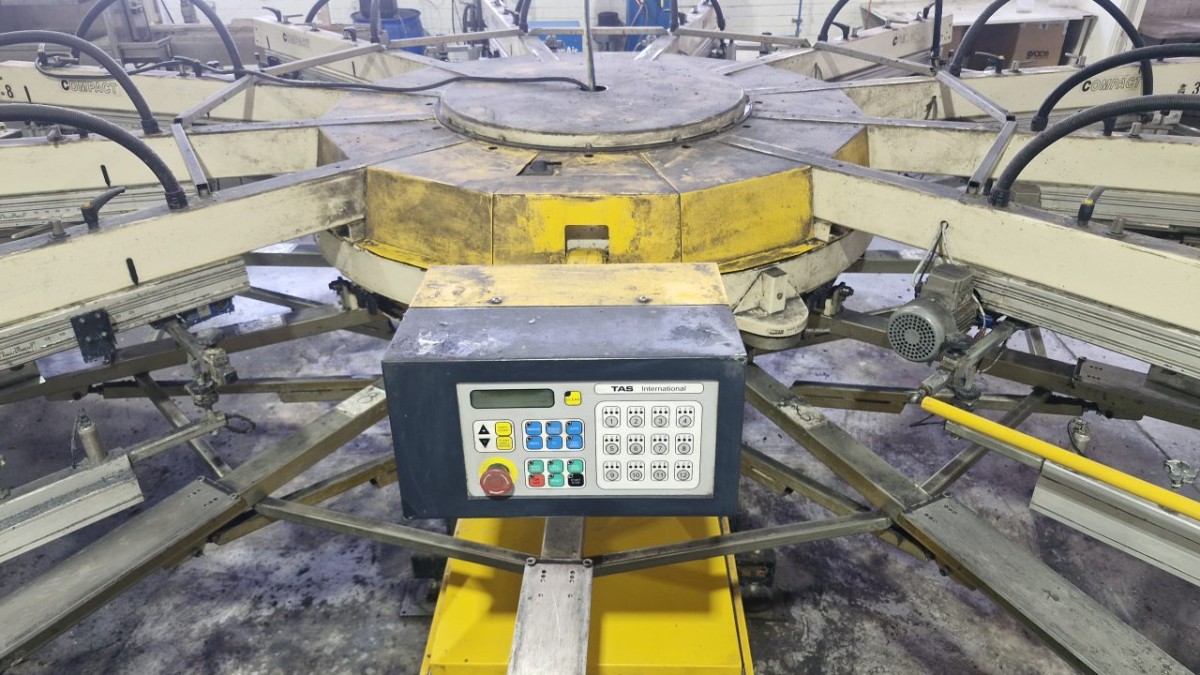

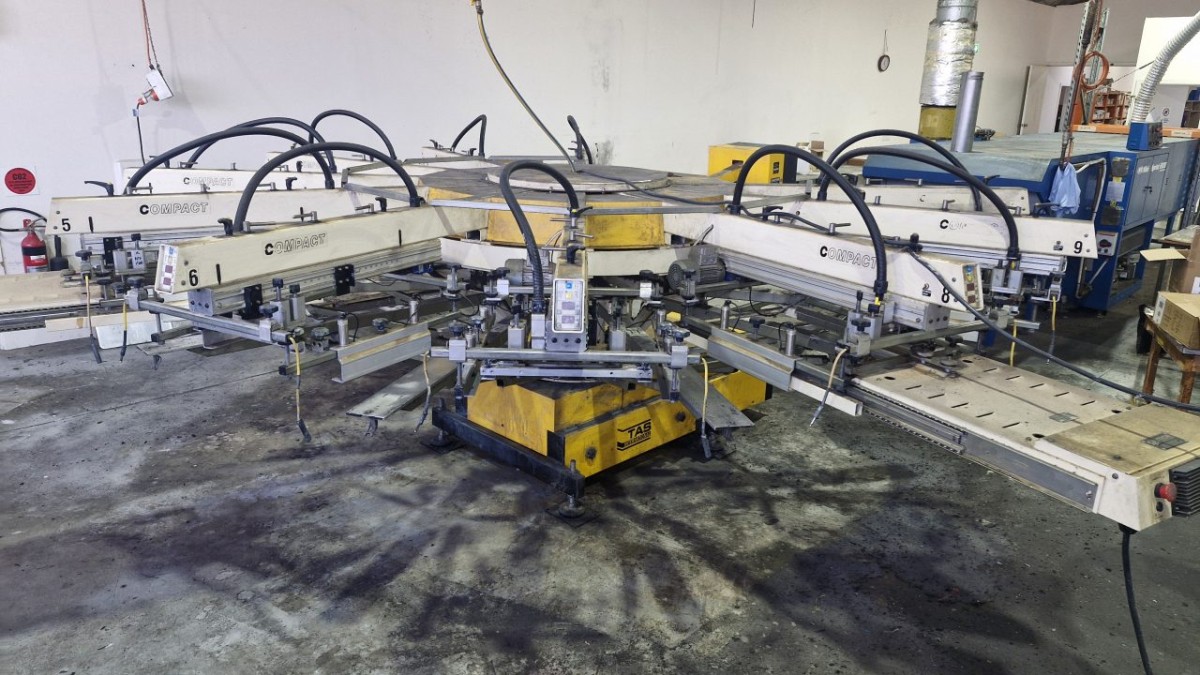

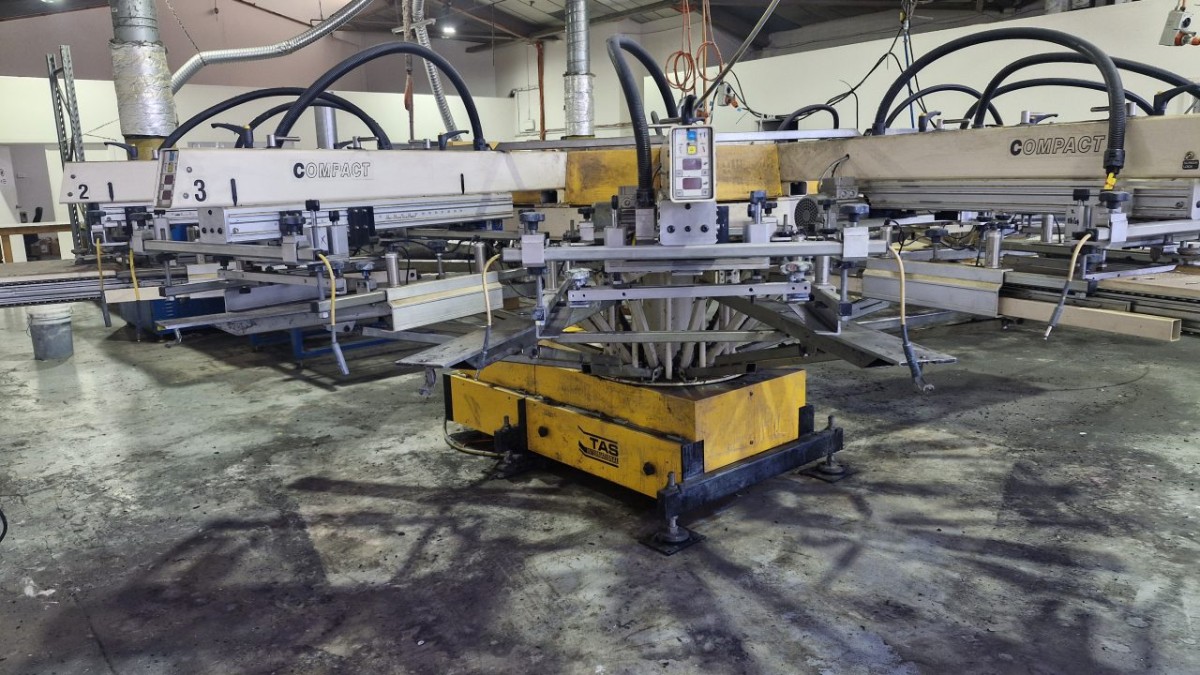

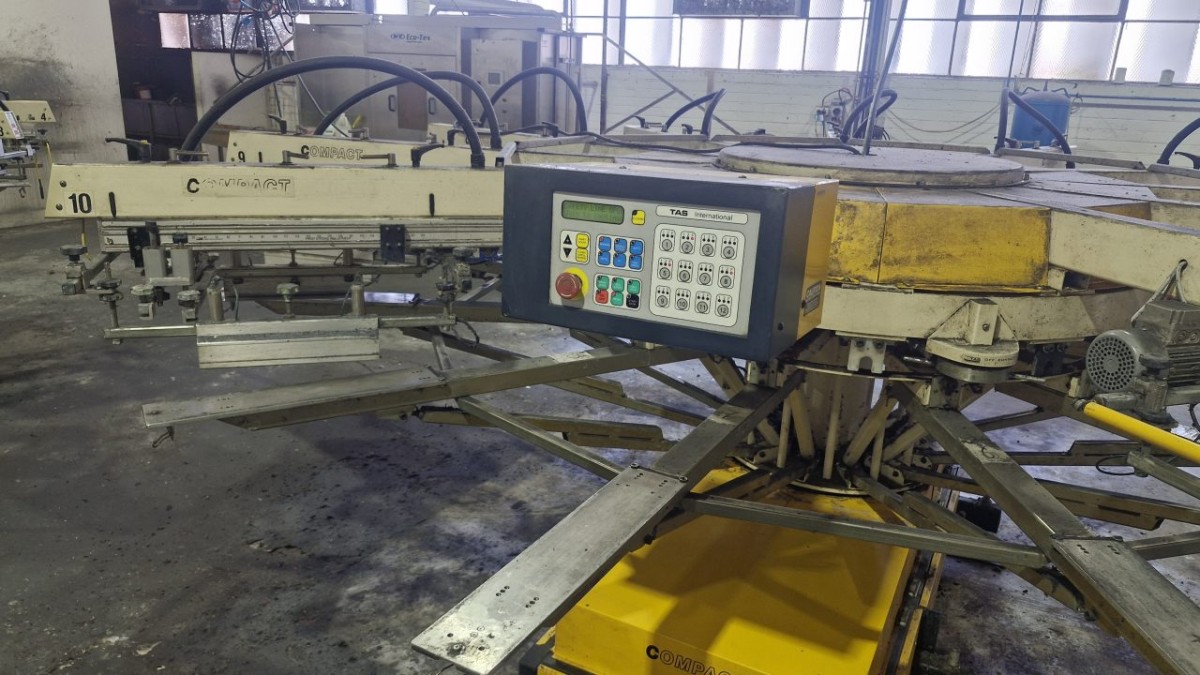

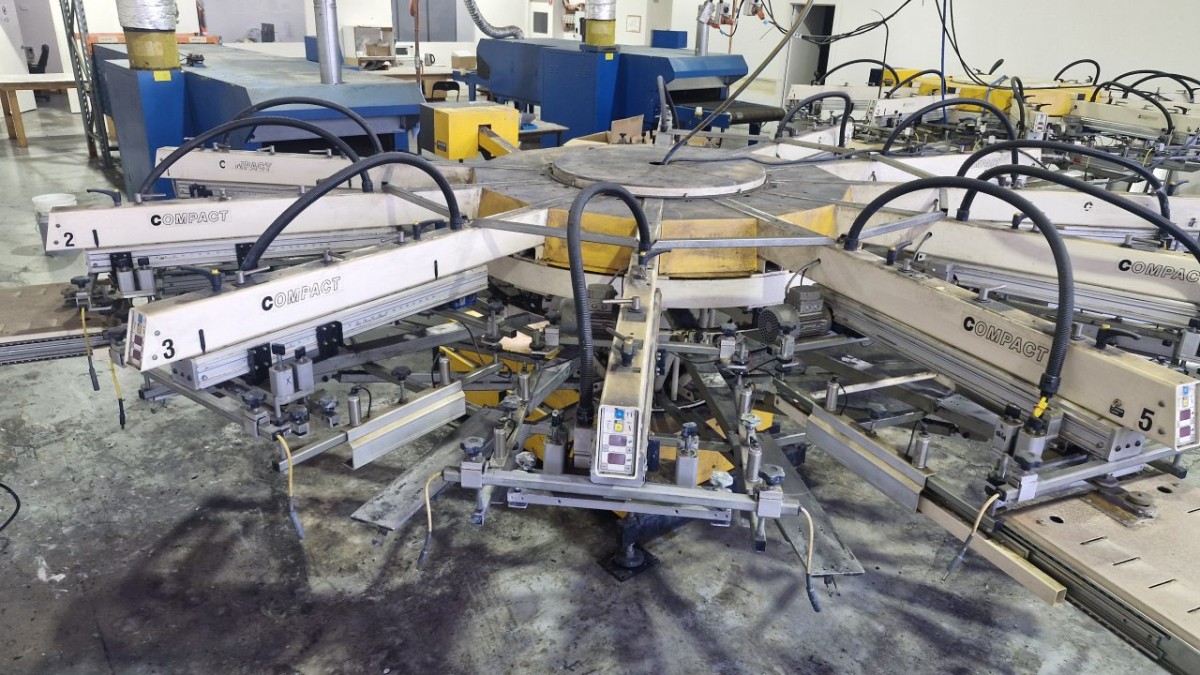

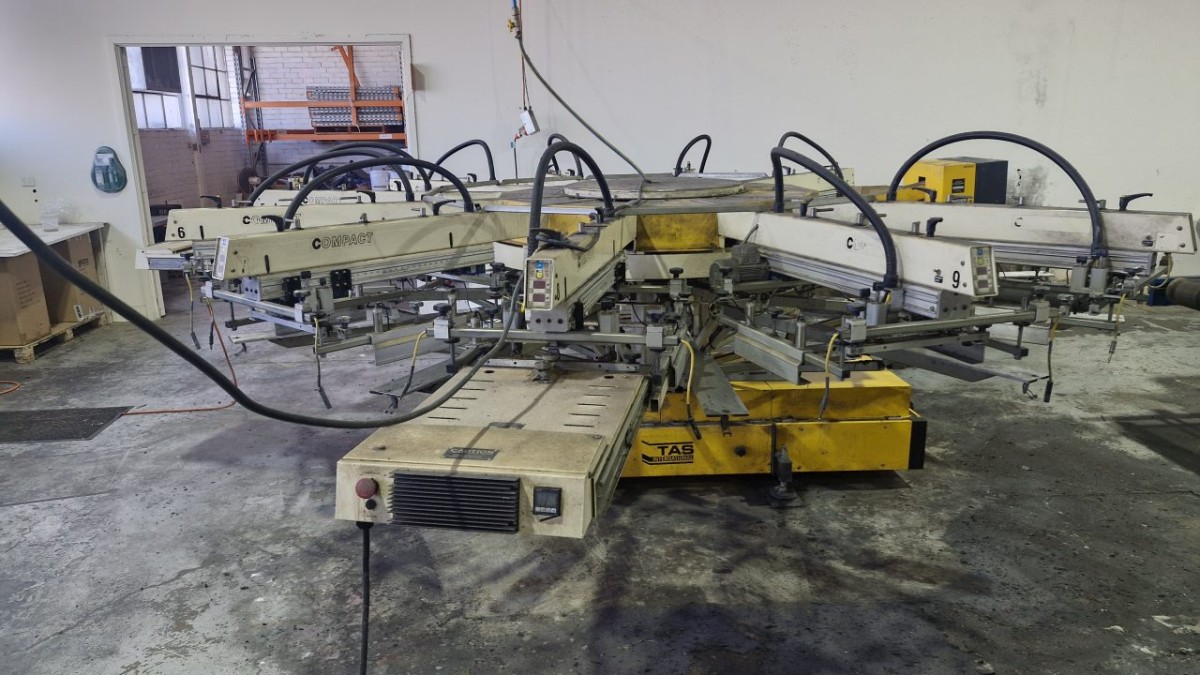

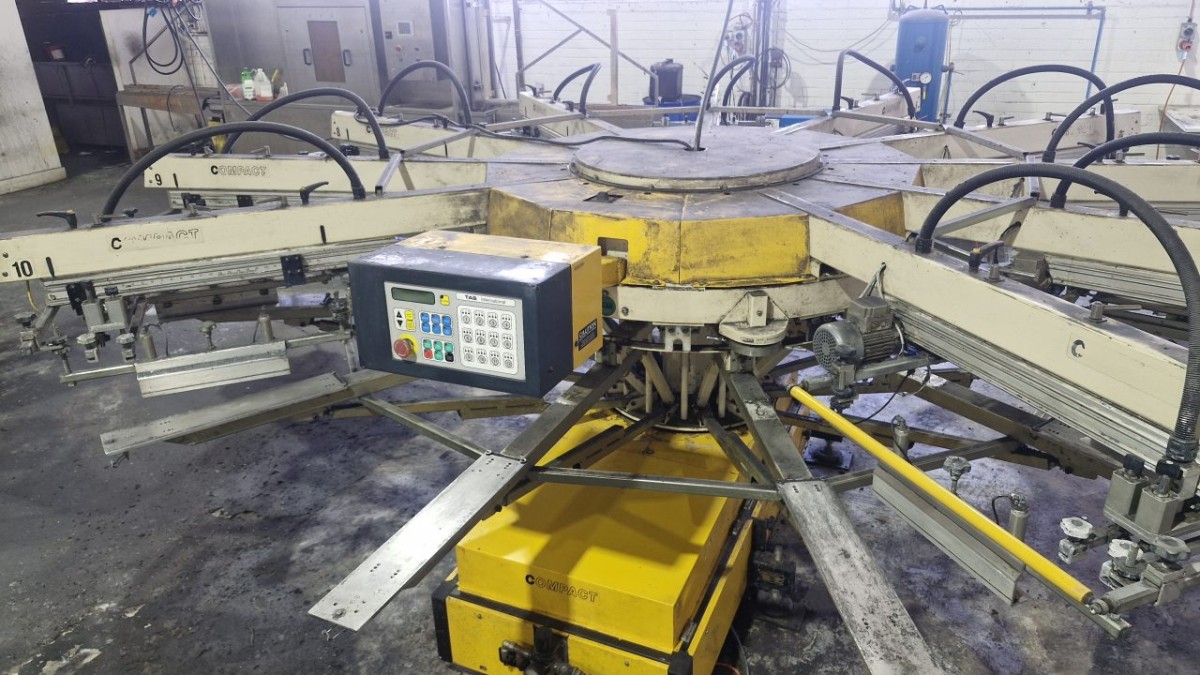

Used TAS Compact CX-10 Automatic Screen Printing Press – R4755

In good working condition

• Model: TAS Compact CX-10 (2.85m prints) – 2012 model

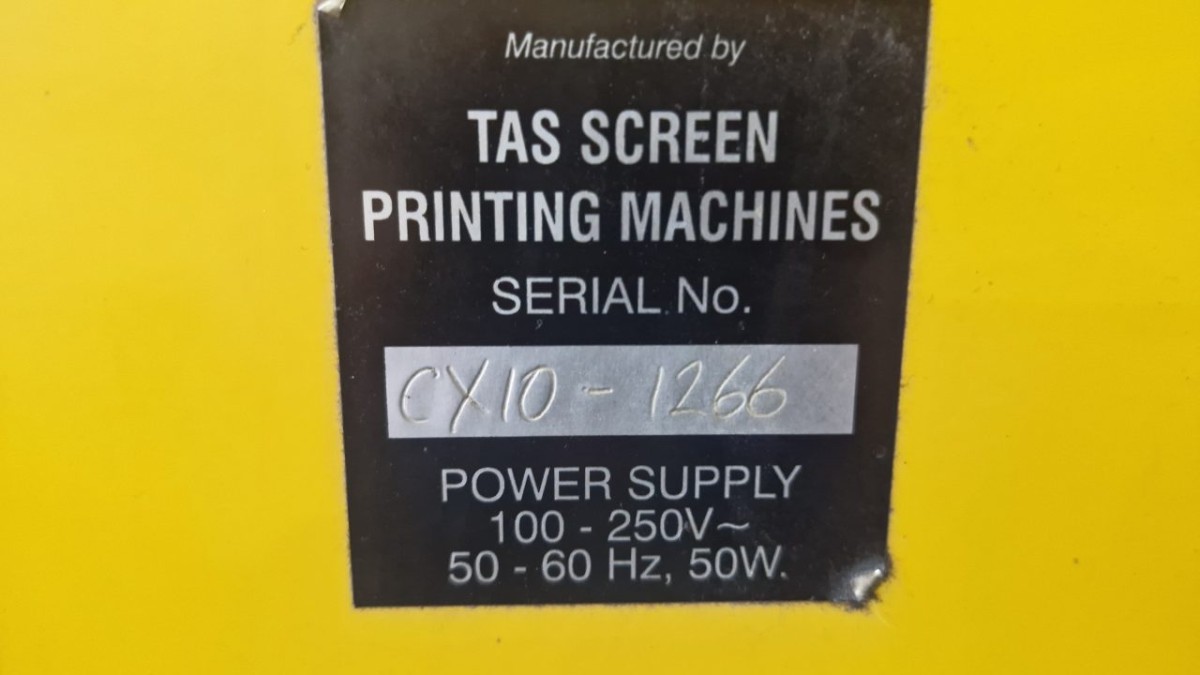

• Serial Number: CX10-1266

• Configuration: 10 Colours / 12 Stations

• Indexer & Print Heads: Electric

• Max Frame Size: 610 × 762 mm (24″ × 30″)

• Max Print Area: 457 × 508 mm (18″ × 20″)

• Diameter: 4,585 mm (15′ 0″)

• Weight: ~1,700 kg (3,747 lb)

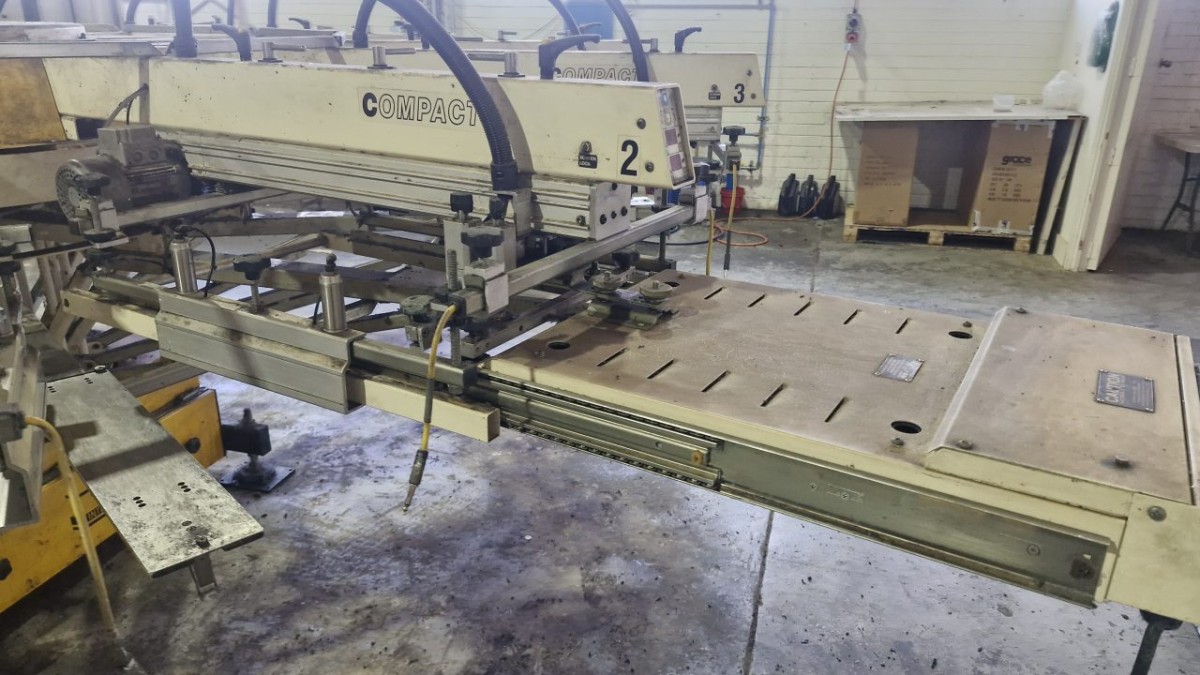

• Standard Pallet Size: 470 × 610 mm (18.5″ × 24″)

• Squeegees & Flood Bars: 460 mm standard

• Squeegee Rubbers: 65 durometer

• Electrical Requirements:

  • 220V / 3 Phase – 15 A, 50/60 Hz

  • 380–415V / 3 Phase – 17 A, 50/60 Hz

• Compressed Air Requirement: 4.2 L/sec (~8 CFM) @ 100 psi

Includes:

• 3 × Black Panel FCU 18×22 (S/N: 850,849,855)

• 3 × Sets of Pallets (Kids 30cm / Adult 40cm / Sleeve 13cm) x 610

Standard Features:

• Micro registration adjustment

• AC electric rotation & print heads

• Central off-contact system

• Roto print program

• Pneumatic screen clamping

• Multi-functional foot switch

• Individual head off-contact

• Front/centre/rear micro registration

📍 Located: Vendor’s premises, Sydney
