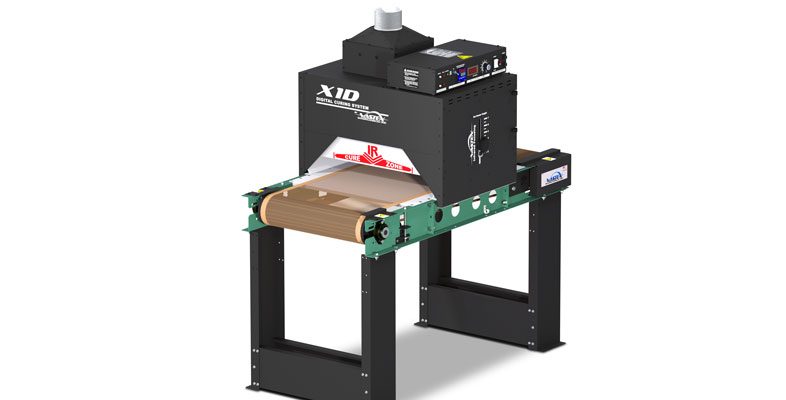

The LittleRed X1D is the smallest conveyor tunnel dryer that matches the output of the most popular DTG printing systems.


With a Belt and overall Heater Width of 46cm, The LittleRed X1D takes up only 8sqr feet (2.44 sq.m) offering an extremely compact machine; engineered to meet the space, budget and performance needs of smaller DTG shops.


Equipped with a boost zone in its heating chamber, the X1D will quickly reach cure temperatures for ink jet, water-based and discharge inks. The dryer can cure up to 27 garments per hour DTG printed with digital white ink, as well as screen printed garments at rates to 81 per hour for water-based or discharge inks and 162 per hour for plastisols.


Features of the X1D:

The LittleRed X1D comes as standard with many of the features found on the larger Vastex DTG capable dryers including the industry-leading 15-year warranty on its heaters.

  • An adjustable belt-to-heater clearance to accommodate bulky items,
  • a dual digital PID temperature controller accurate to +/- 1°F,
  • An X-Series conveyor belt roller tracking system with Teflon coated fiberglass belt.
  • Powered exhaust to remove moisture and air contaminants, while cooling the housing and controls.
  • The X1D will run on Single Phase, 15 AMPs power.


Like the rest of the Vastex Infrared Tunnel Dryer Range, the X1D is expandable and additional heating chambers and belt extensions are available. Optional extras for the LittleRed X1D include locking casters for easy mobility and Creeper gear.


See our range of Vastex DTG Tunnel Dryers for larger sizes, or call (0)2 9482 4999 for a quote on getting this innovative DTG Tunnel Dryer.

* Production speeds are estimates and based on 16″ centers and will vary depending on ink manufacturer, humidity of shop and other variables.
