Vastex EconoRed II

EconoRed II – A High Production Infrared Conveyor Dryer

The Vastex EconoRed II Infrared Conveyor Dryer offers a high production dryer for mid to large sized shops that need outputs of 300* or 600* pcs/hr/chamber.



A compact powerhouse, the EconoRed comes with many advanced features including digital temperature control, power exhaust and air recirculation.

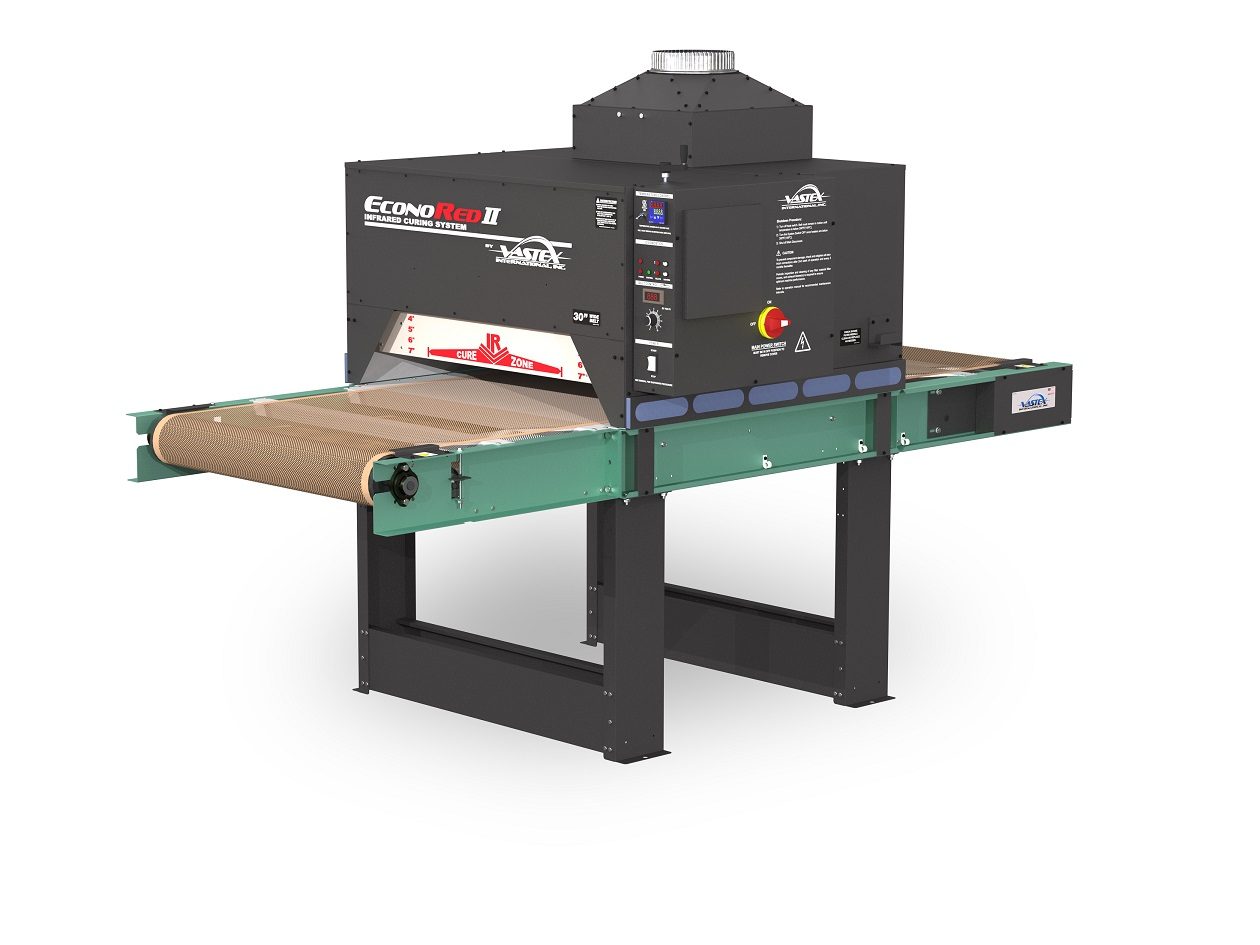

The EconoRed II is available in both a 30″ and 54″ model offering belt widths of 76 and 137 cm respectively.

Featuring a focused exhaust air system the EconoRed evacuates fumes and moisture quickly. The Heavy Duty  “X-Series” Conveyor belt tracking system will provide you with confidence, while the Infrared Focusing System provides more power for fewer dollars.



The EconoRed has a belt to heater height adjustment allowing you to conveniently dry different sized garments. The Digital PID Temperature controller is accurate to +/-1°F while the Heavy duty DC belt speed motor with digital voltage display gives you peace of mind by providing a consistent result.



The EconoRed Conveyor Dryers can grow with your business or be customised to suit your needs. Simply add heat chambers and/or belt extensions to get the production results you want.

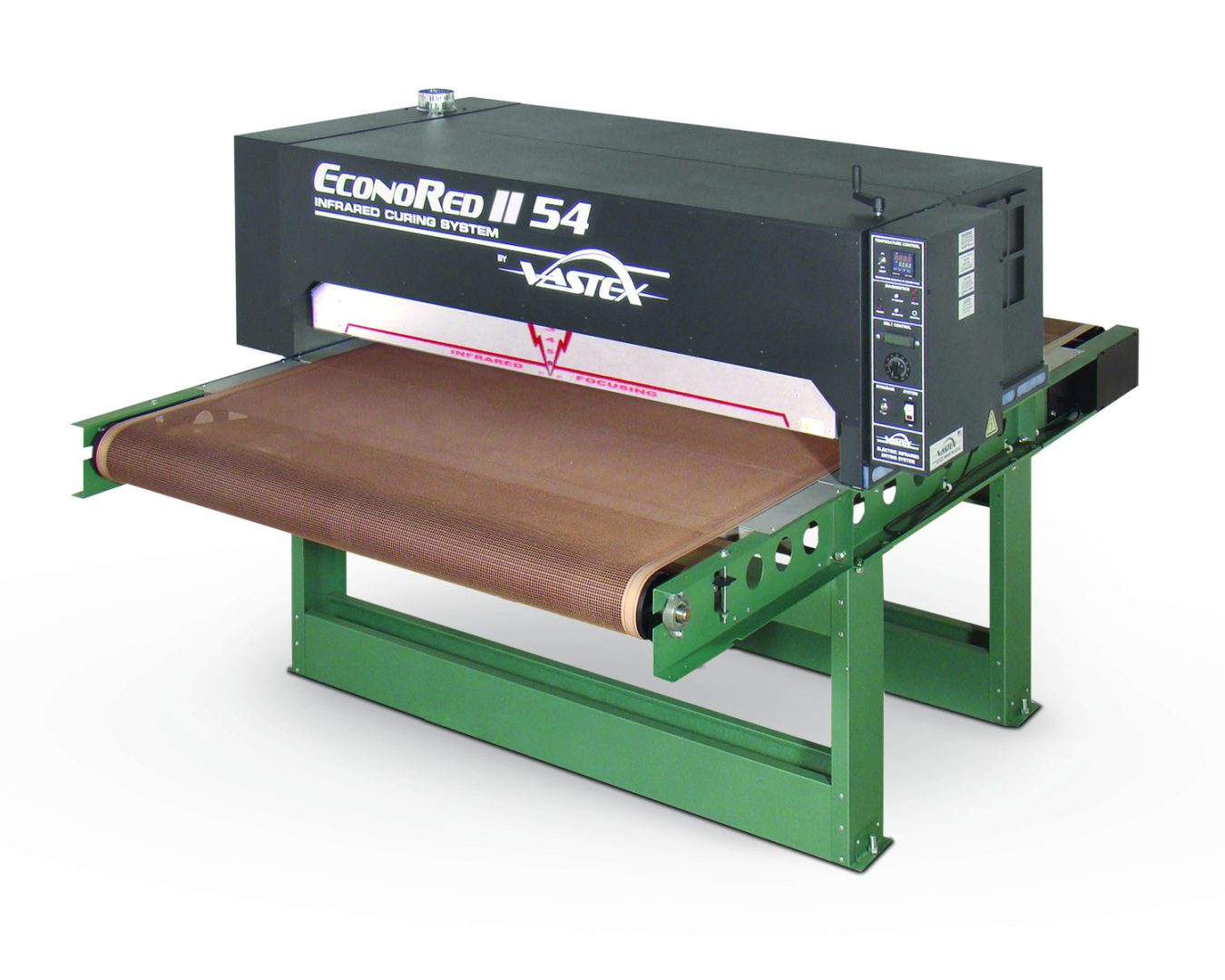

The EconoRed II-54 with a single chamber has the capacity to keep up with small automatics. Add a second chamber and you have the power to cure 1000* shirts per hour in only 10½ feet. With a 54″ wide belt you can run two or three rows of shirts with standard size prints or all-over prints.



Specs:           EC-II-30              EC-II-54

Cure Rates*:   300/hr                    600

Plastisol:          100                          200

Water Based/Discharge:

Belt Width (max garment width): 30″ (76 cm) or 54″ (137 cm)

Heater Width: 24″ (61 cm) or 48″ (122 cm)



Additional Options:

  • Heat chambers 36″ (91 cm) long
  • Belt extensions, 18″ (46 cm) long
  • 3 Phase & other voltages available
  • Exhaust Hood, reduces fumes at exit of dryer
  • Hat support rail
  • Locking casters for easy mobility

*Production speeds are estimates and will vary depending on ink manufacturer, humidity of shop and other variables
