Vastex LittleRed X1 Series Infrared Conveyor Dryers

The Little Red Series offer a Compact, Mid-Level Infrared Conveyor Dryer.



The all-new series of Little Red Conveyor Dryers from Vastex offers expandability, repeatable results and fast payback never before available to mid-capacity textile printers. With a tilting heater design, they are ideal for curing hats.

The Series start with the Little Red X1 models and offer higher capacities in the Little Red X2 models.

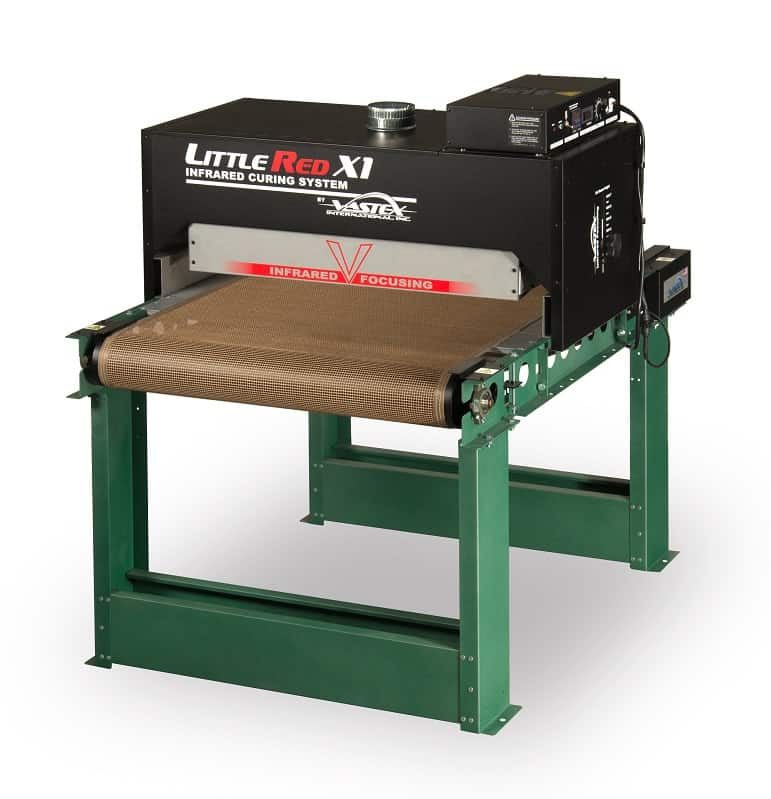

Little Red X1-30 (LR-X1-30)

The Little Red X1-30 model comes with a 30 in. (76 cm) wide x 48 in. (122 cm) long conveyor belt. It has a 61 cm wide 2,600 watt heater to cure up to 130 plastisol-printed images or 45 discharge or water-based printed images per hour.

Little Red X1-54 (LR-X1-54)

little-red-x1-54-tunnel-dryerThe Little Red X1-54 model with 54 in. (137 cm) wide x 66 in. (168 cm) long conveyor  belt. Equipped with a 122cm (48 in.) 240V, 5,200 watt infrared heater to cure up to 260 plastisol-printed images or dry 90 discharge or water-based printed images per hour.

The capacity of both models can be expanded as needs grow by adding modular heating chamber(s) and longer conveyor belts.



Features of the LR-X1 models:

  • Closely spaced coils provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under-curing
  • Industry-leading 15-year heater warranty
  • Digital PID Temperature controller is accurate to +/-1°F
  • Low friction belt aligner and DC belt speed control with digital display
  • “X-Series” Conveyor Belt Tracking System with Teflon coated fiberglass belt
  • Adjustable 5-18cm (2 – 7 in.) belt-to-heater clearance, adjustable separately on each side for each heater
  • Expandable: Add 46cm (18 in.) and 92cm (36 in.) chambers and/or 46cm (18 in.) belt extensions
  • CE Certified by Certification experts in the Netherlands



OPTIONS

  • Additional heating chambers and conveyor belt extensions
  • Heavy duty belt motor (recommend for longer conveyor belts)
  • Locking casters for mobility
  • Powered exhaust system that cools the outer cabinet while evacuating moisture and fumes



Still want more? Find out about the additional capacities offered by the LR-X2 Little Red Dryers

* Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
