Vastex V-2000HD Industrial Manual Screen Printers

Built to last a lifetime


The Vastex V-2000HD Screen Printing Carousels offer a heavy duty screen printing press with a 25-year warranty*. It comes with a solid structure and the most efficient Micro-registration in the industry.


Available in your choice of 1 to 10 stations and 1 to 10 print heads, the V-2000HD carousels are designed to be expandable so you had upgrade at any time from 1 station 1 colour to your choice of stations and colours with a maximum of 10 colours and 10 stations.


The Vastex V2000HD Series of heavy-duty manual screen printing presses offers the screen printing professional an unequalled range of advanced capabilities that decrease set up time, improve registration accuracy and increase productivity.


The Vastex V-2000HD screen printing carousels come standard with the following features:

  • 100% Wrench Free Adjustment Speed up your work flow with independent head levelling, “off-contact” adjustment, micro-registration with zero backlash and complete removal or installation of the print head in seconds.
  • Heavy Duty Never warp steel pallets with rubber tops and the new corner clamp pallet arm
  • Adjustable 6 way screen levelling
  • Precise Screen Printing as the V-2000HD holds accurate multicolour printing registration
  • Accuracy with the embedded registration bearings close to the screen, so they stay clear of spray tack
  • Flexibility; allowing the screen printer to print all heads down
  • Gas lifters with 16 position variable lift strength
  • The 30 cm wide steel rear screen clamps are joined by a steel clamp bar for off center clamping (6.9 cm) with precision ground center shaft. This combined with the 7.6cm square steel rotor arm with ruler indicator make the V-2000HD a strong, durable machine.
  • The Elevated Pallets mean there is no need to stretch shirts over the arm. It is also compatible with quick stretch jacket attachment.
  • Featuring Zero backlash bearings on screen arm pivot and convenient adjustable micro clamp levers


The V-2000HD is available in both Tabletop versions and Floor Standing Carousels. v-2000-tablerop-carousel

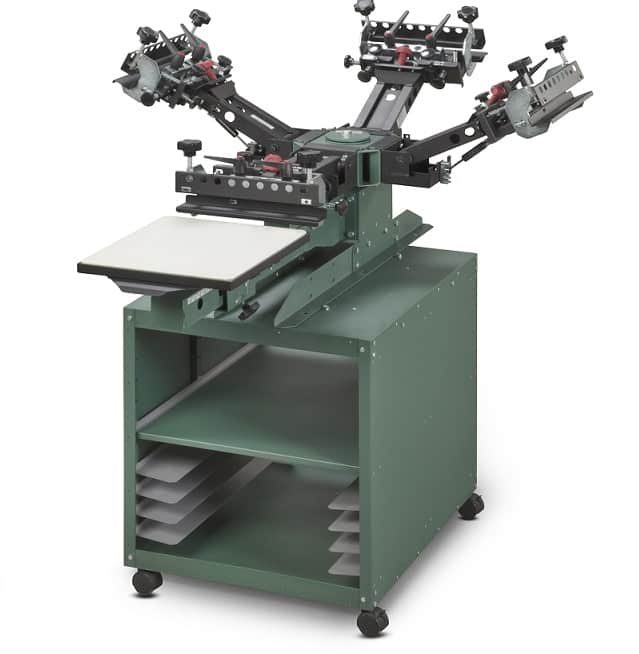

Tabletop Versions are available in both 1 Colour/1 Station to 4 Colours/1 Station.

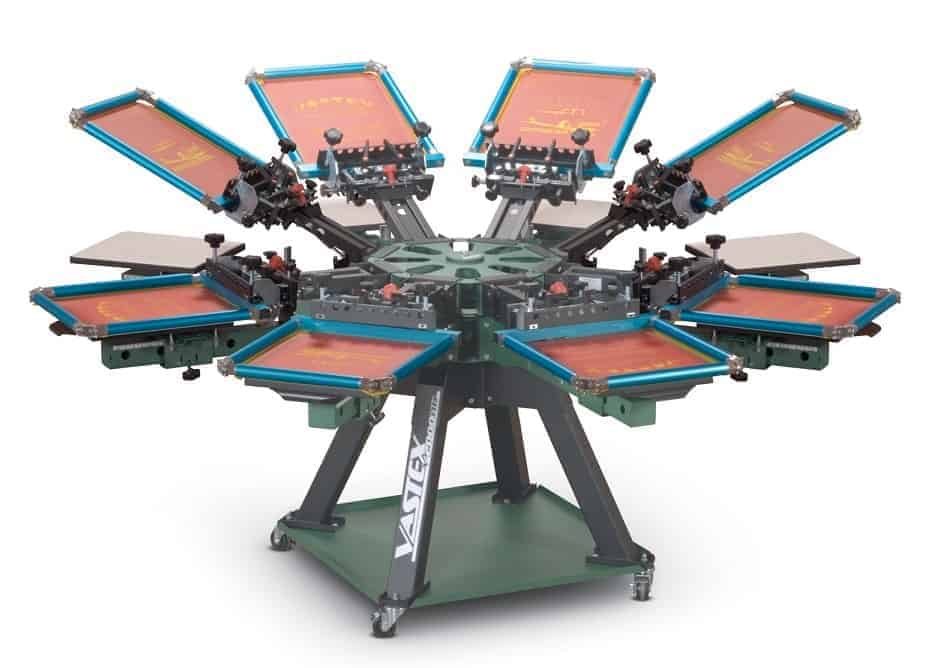

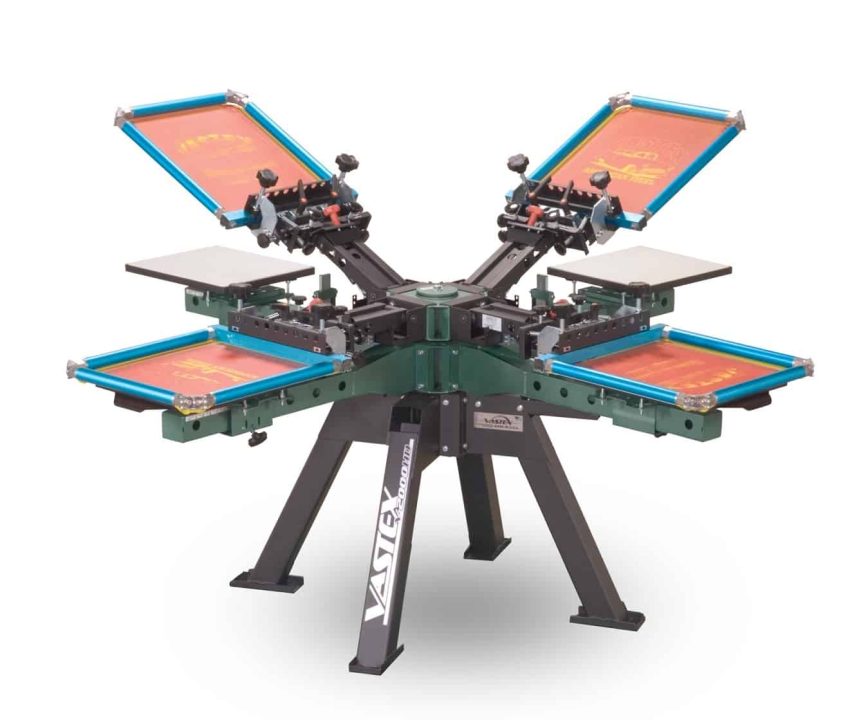

Floor Standing Carousels are available in 4 Colour, 4 Stations up to 10 Colour/10 Station options.

An advantage of the V2000 Floor Standing Carousels is that you can start with a smaller configuration and then upgrade your existing carousel to a larger colour/station option when required.


Backed by an unprecedented 25-year warranty*, these are industrial-strength machines in every respect, with steel-tube legs, 3 in. (76 mm) square steel rotor arms, heavy-gauge steel rotor assemblies, and never-warp steel pallets, with all critical moving parts — including registration wheel locks — gliding on ball bearings.


The V2000HD heavy duty print head allows the industry’s fastest set-up and micro-registration, and accepts clamp-on DiGiTTM athletic numbering jigs and side-clamp accessories in 20 seconds.


View the range of V-2000 Pallets and Accessories available for pressing all types of garments.


*25 year limited warranty.
Gas springs and rubber pallet tops covered for 3 years.

Contact Leapfrog Machinery on +61 (0) 2 9482 4999 for a quote or view more Vastex Screen Printing Carousels available.


Complete your screen printing business with the Vastex E-200 LED exposure unit with a vacuum pump and long-lasting LED light pack, a Flash Cure Unit or Conveyor Dryer.
