SPECIAL PACKAGE – Used TAS Hawk HX16 Automatic Screen Printing Carousel SPECIAL JUMBO PACKAGE B – R4636

$95,000.00 + gst

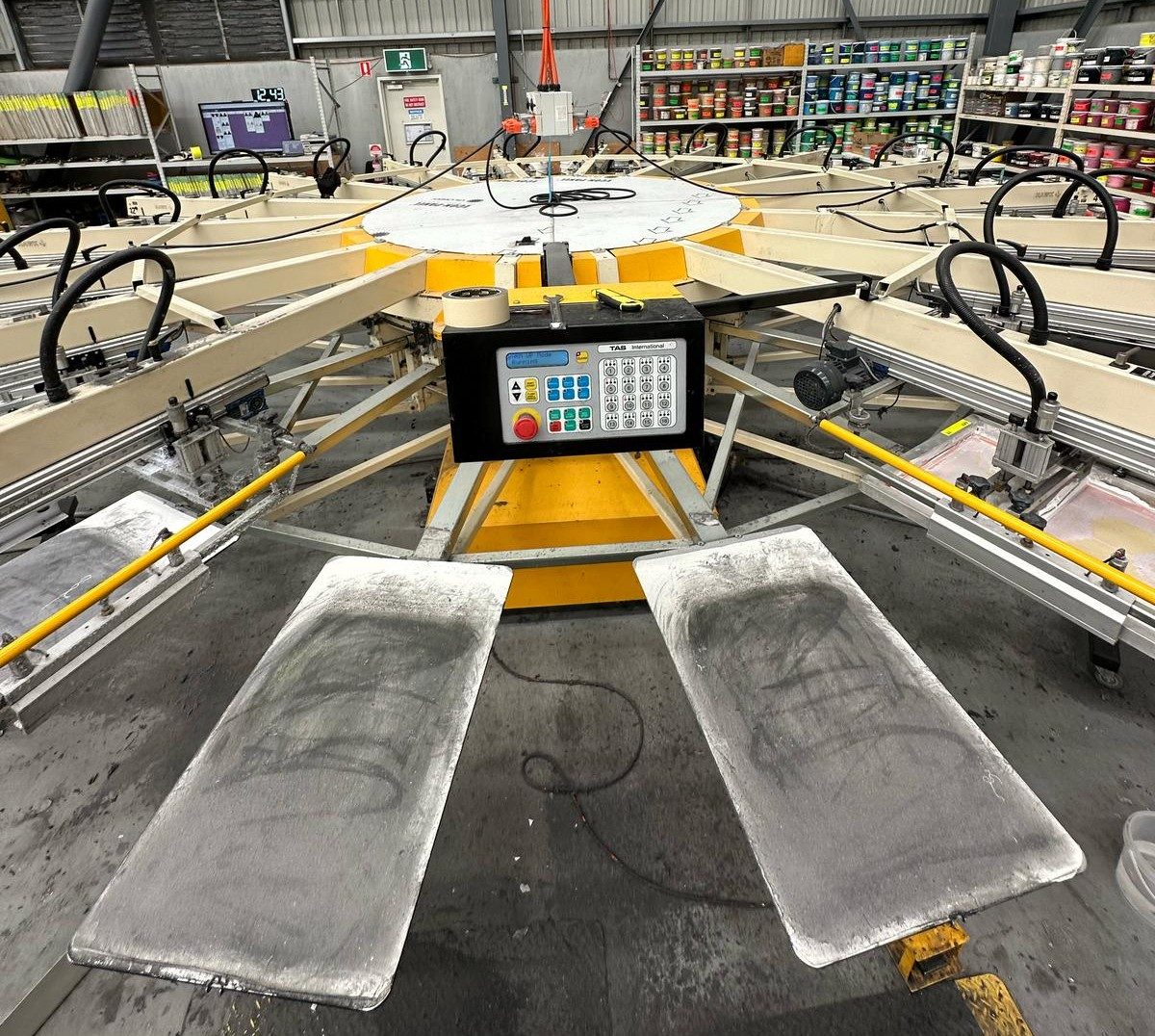

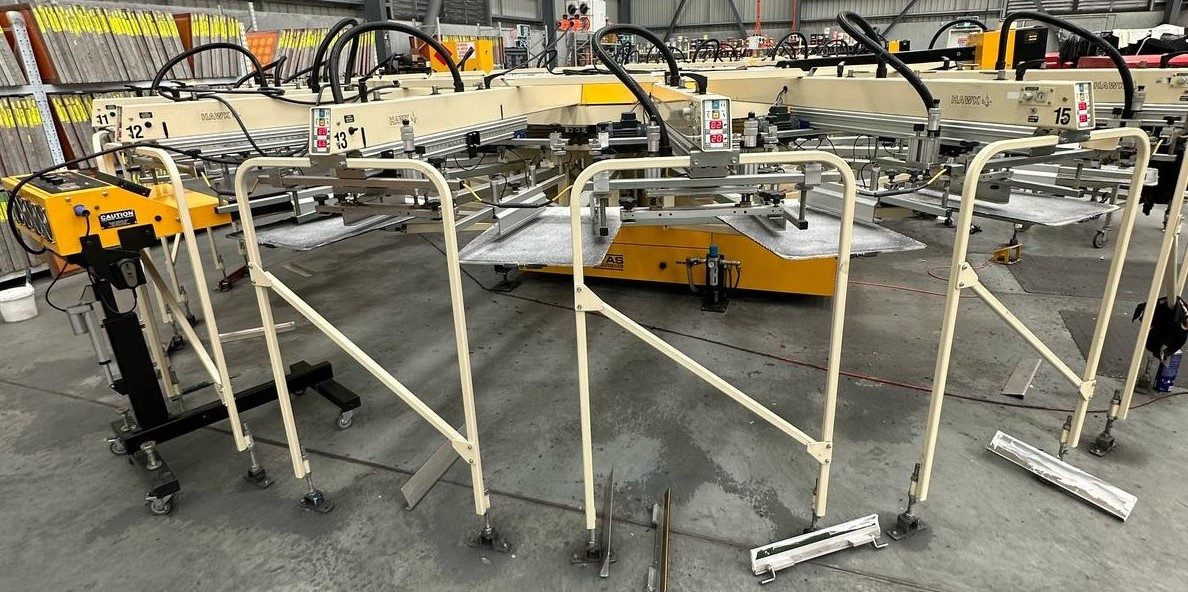

Used TAS Hawk HX16 Automatic Screen Printing Carousel Jumbo Package (worth $229,000)

Your near Virgin machine awaits you – at a mere 620,000 prints its just run in, now your opportunity to save over 50% of the price of a new one.

PACKAGE INCLUSIONS:

  1. TAS Hawk HX16

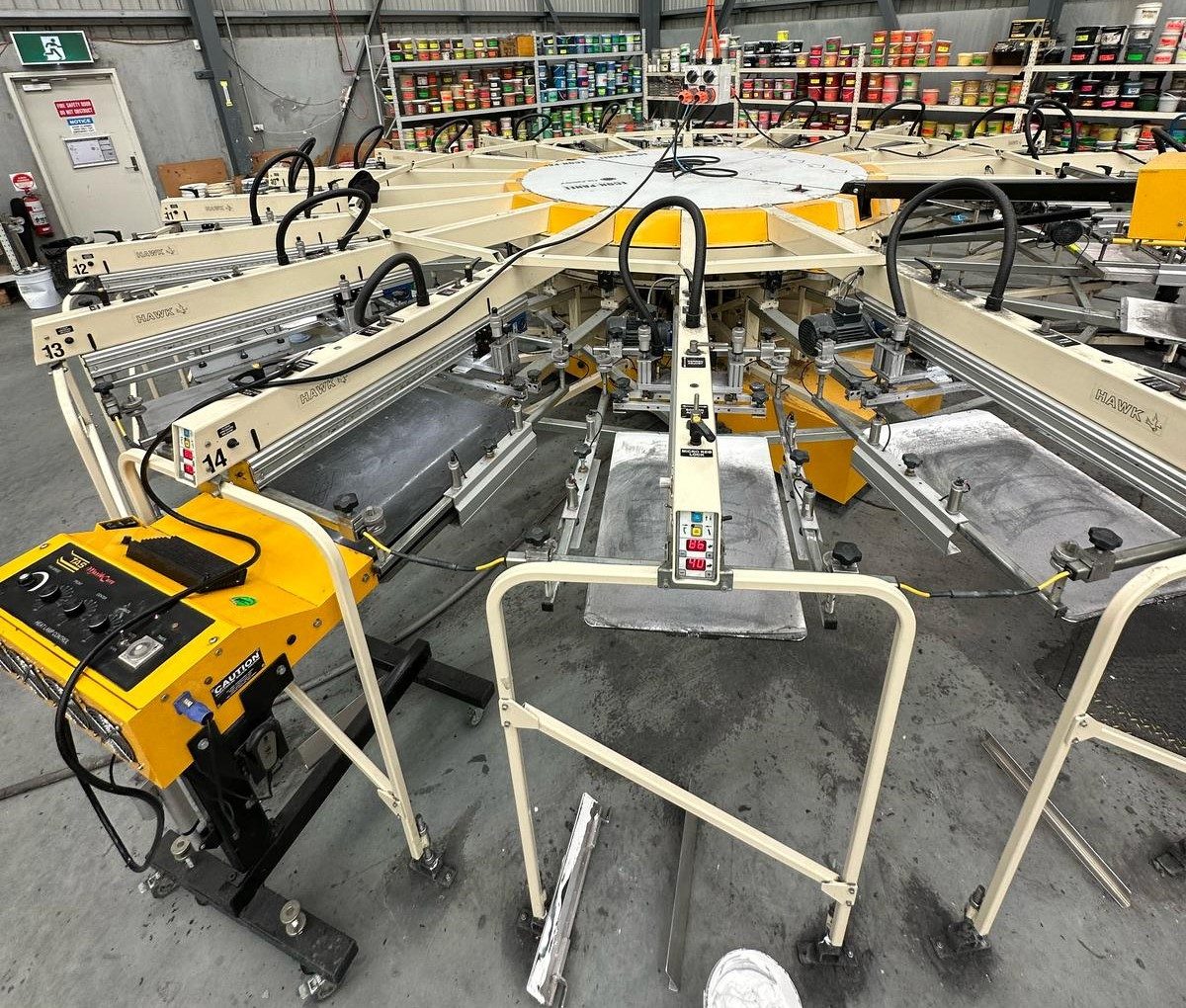

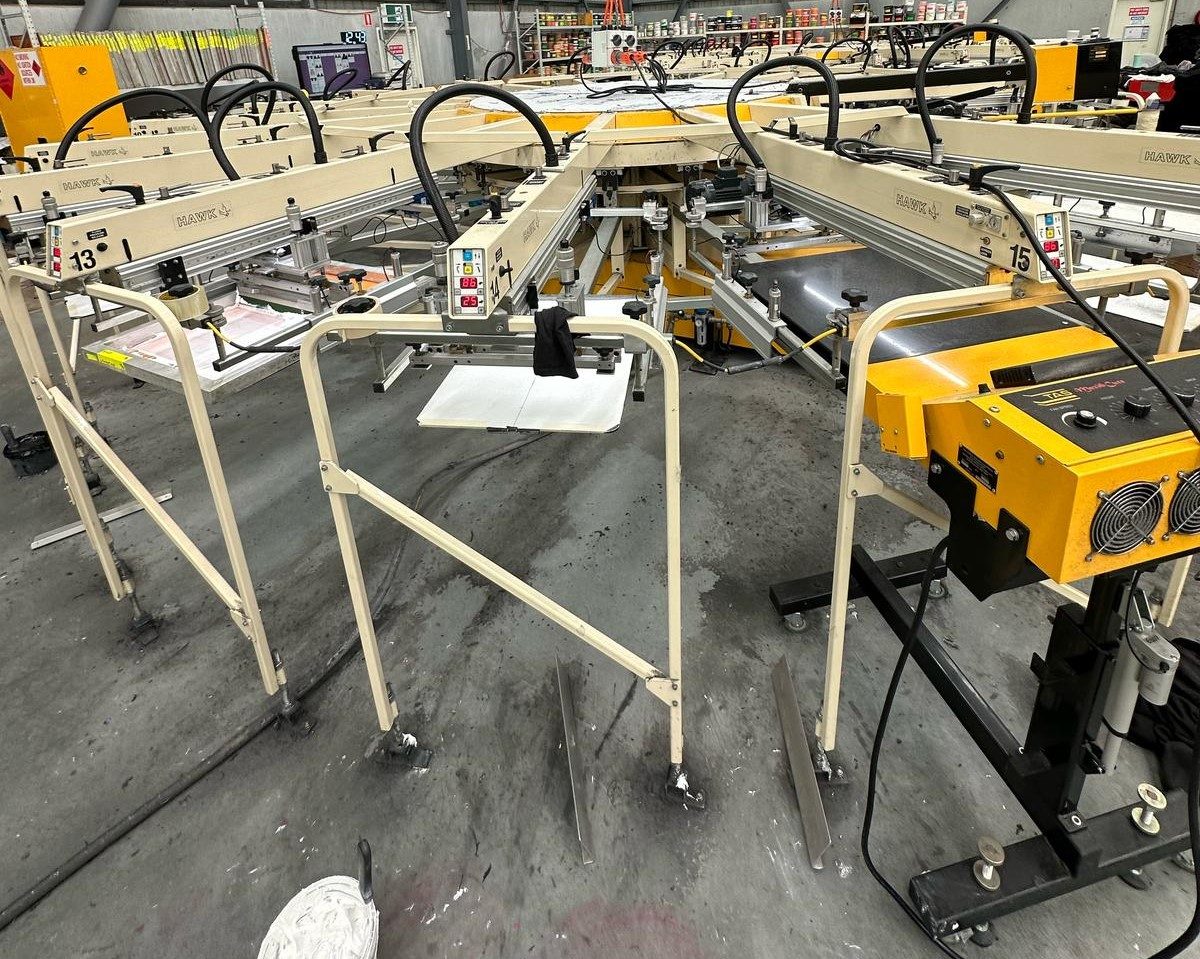

  2. 3 x TAS Quartz Maxi Cure Flash units

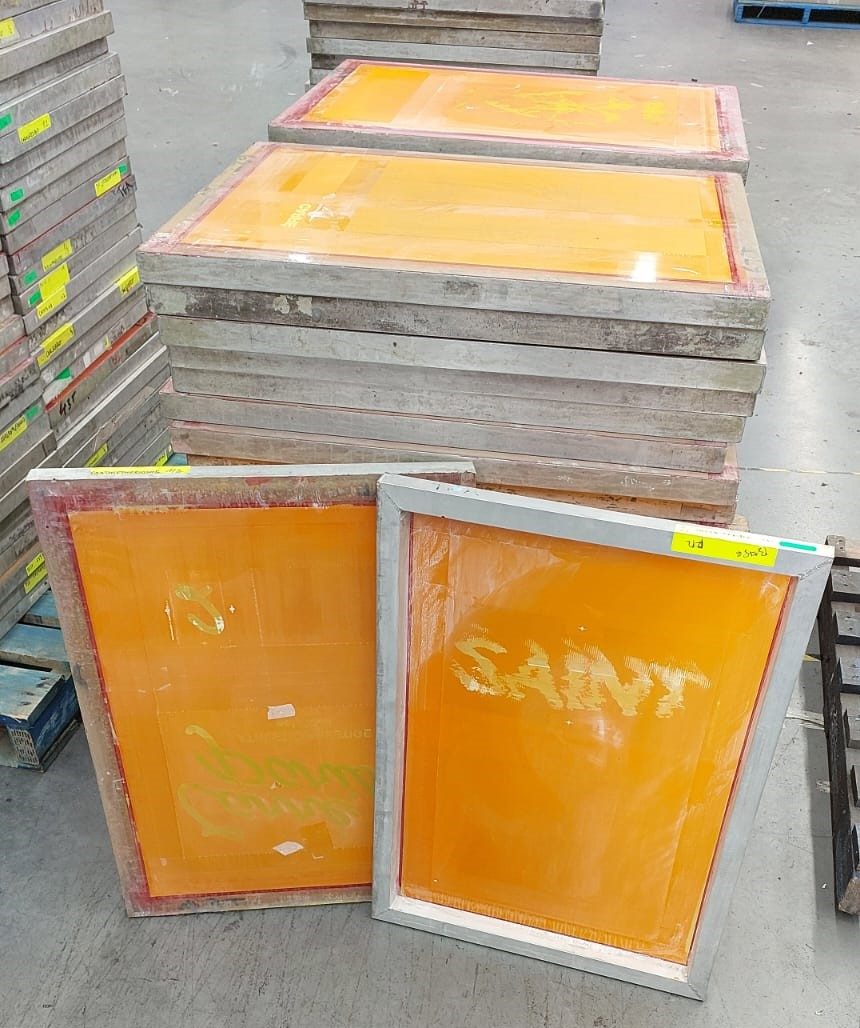

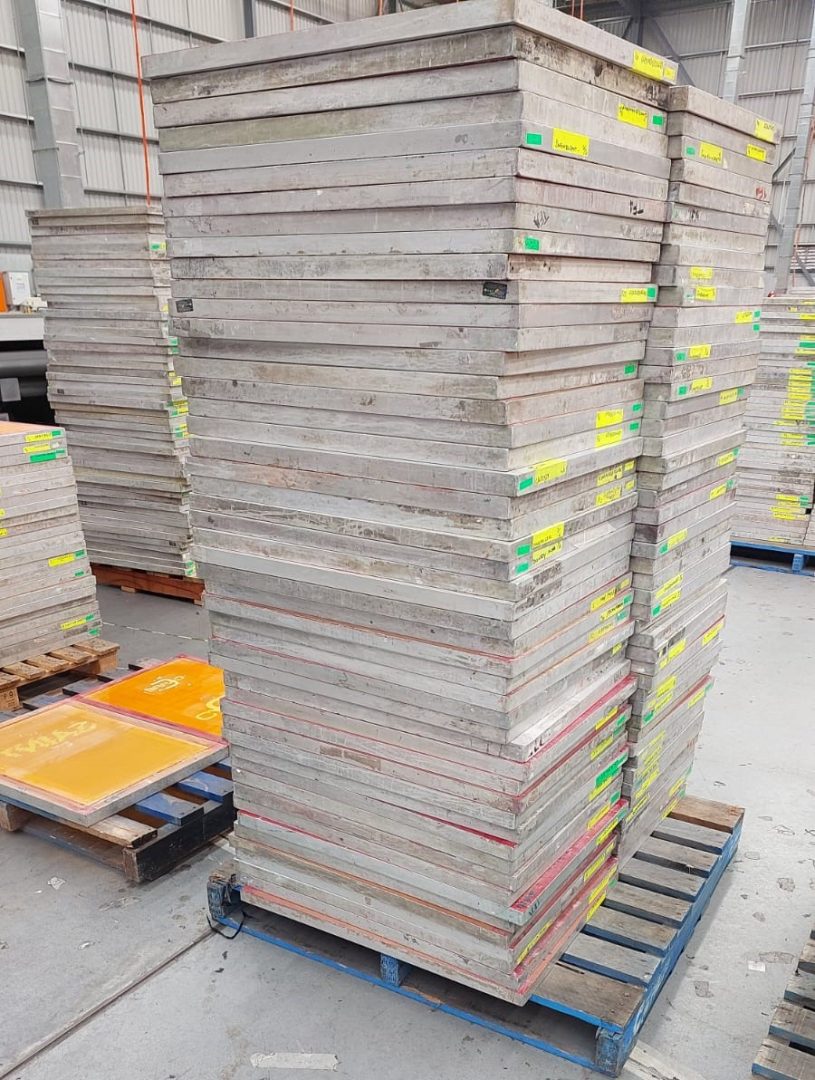

  3. 100 Used Fine Mesh Screens
  4. and a Used Gilrow EODJ6.4 Tunnel Dryer ASWELL!

ALL FOR JUST $95,000+GST

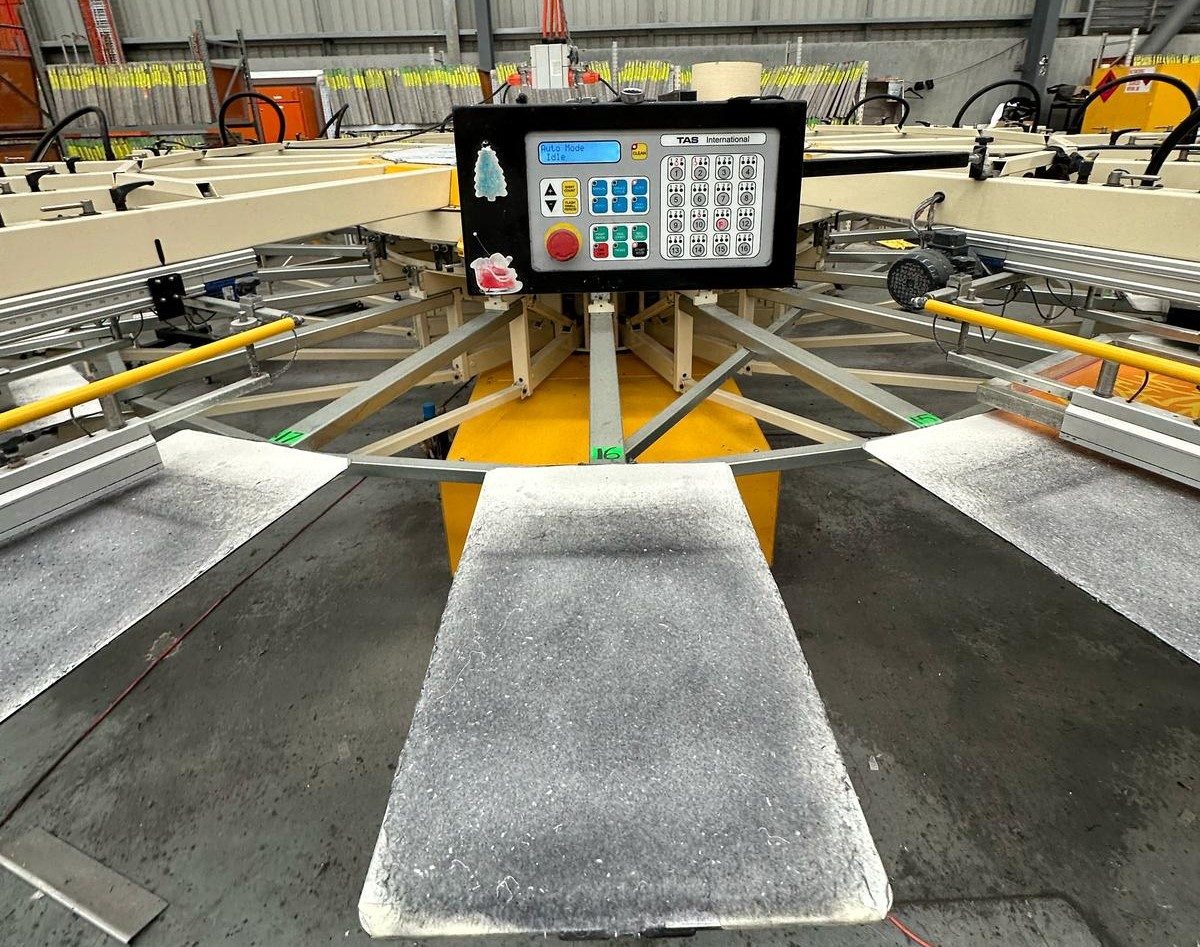

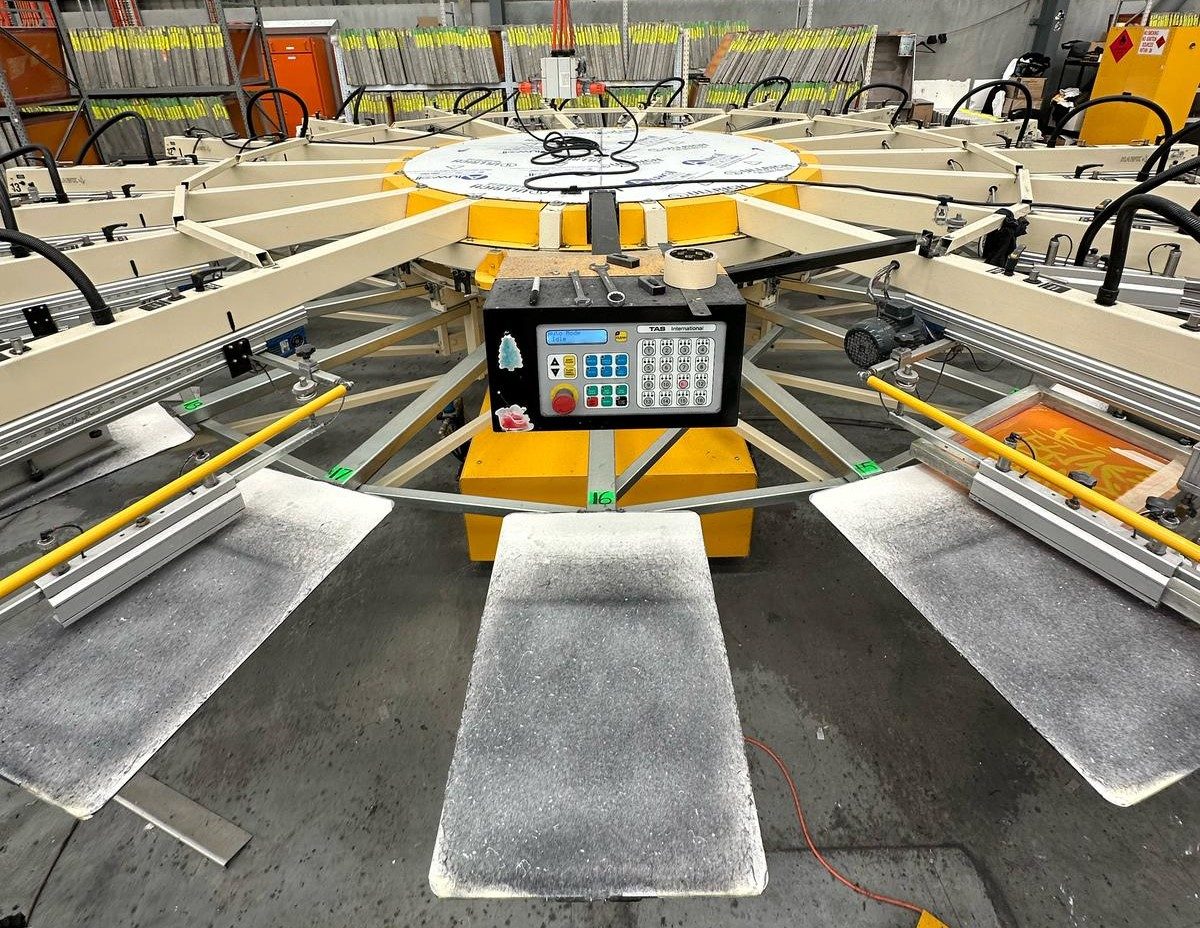

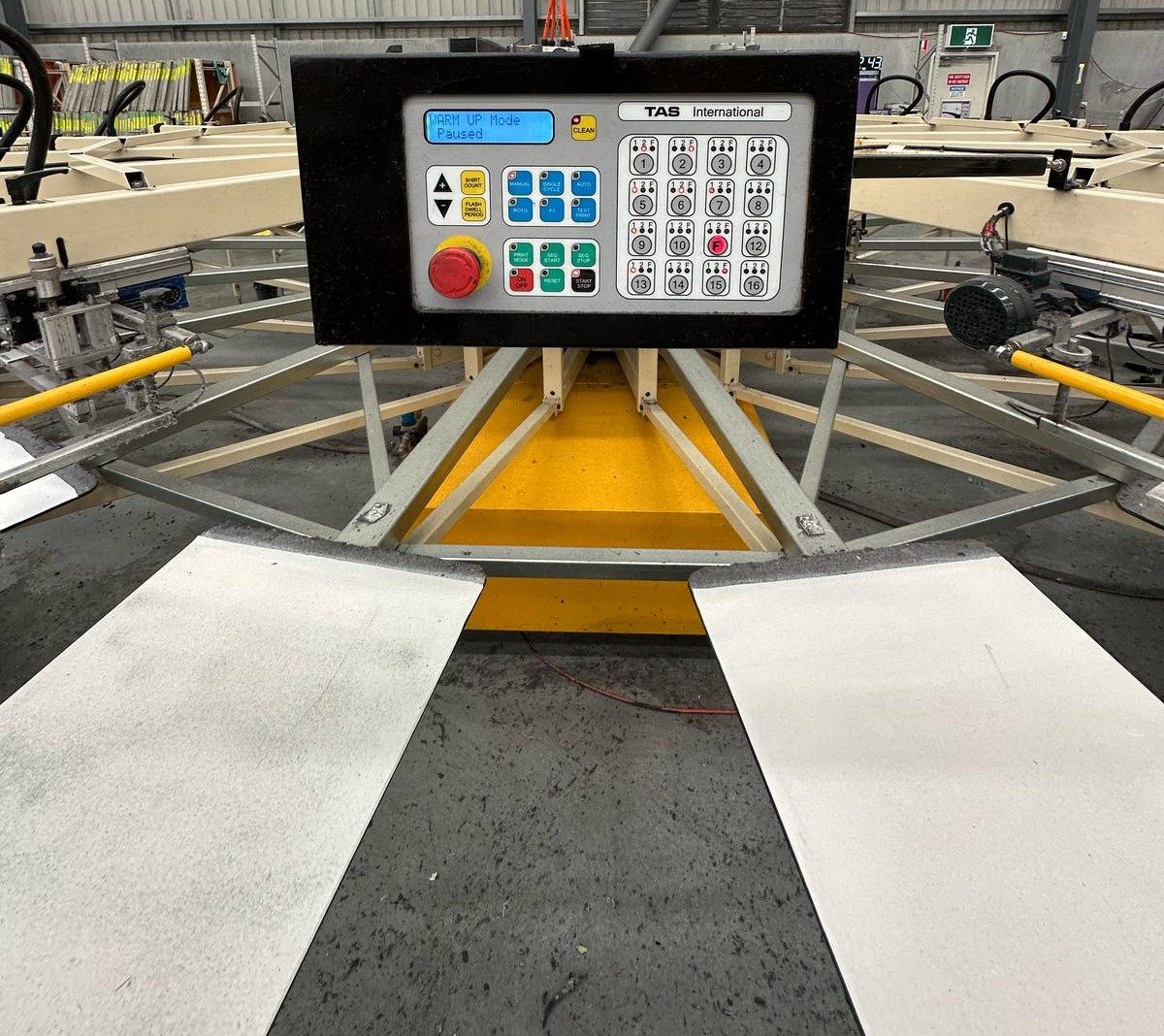

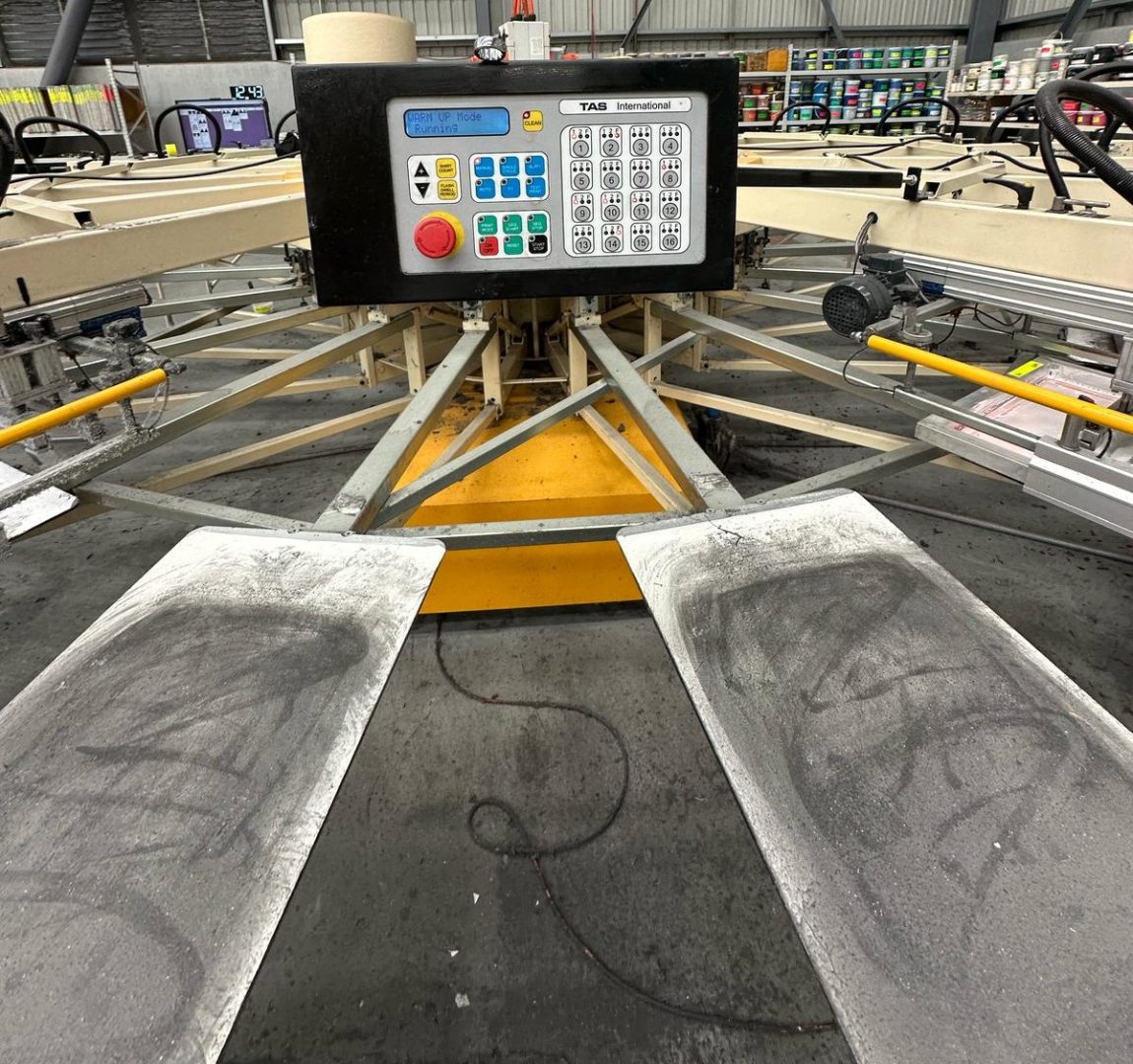

TAS Hawk HX16 Specifications:
Colours: 16
Stations: 18
Indexer: Electric
Print Heads: Electric
Max Outside Frame Size: 660mm X 940mm (26″ X 37″)
Max Print Area: 508MM X 635mm (20″ X 25″)
Diameter: 6300

Standard Pallet Size: 470mm X 762mm (18.5″ X 30″)
Standard Squeegees & Flood Bars: 460mm
Standard Squeegee Rubbers: 69 Duro
Electrical Requirements 220v/3Ph: 23amps 50/60hz
Electrical Requirements 380-415v/3Ph: 25amps 50/60hz
Compressed Air Requirement: 10 l/sec 19cfm @ 100 psi

Serial Number:: 1471
0.589 Million prints

2021 model

2 x Maxi Cure Flash:5065
Heat area of 500 x 650mm
9 quartz elements provide consistent heat coverage and speed.
Power: 3 phase 20 amps

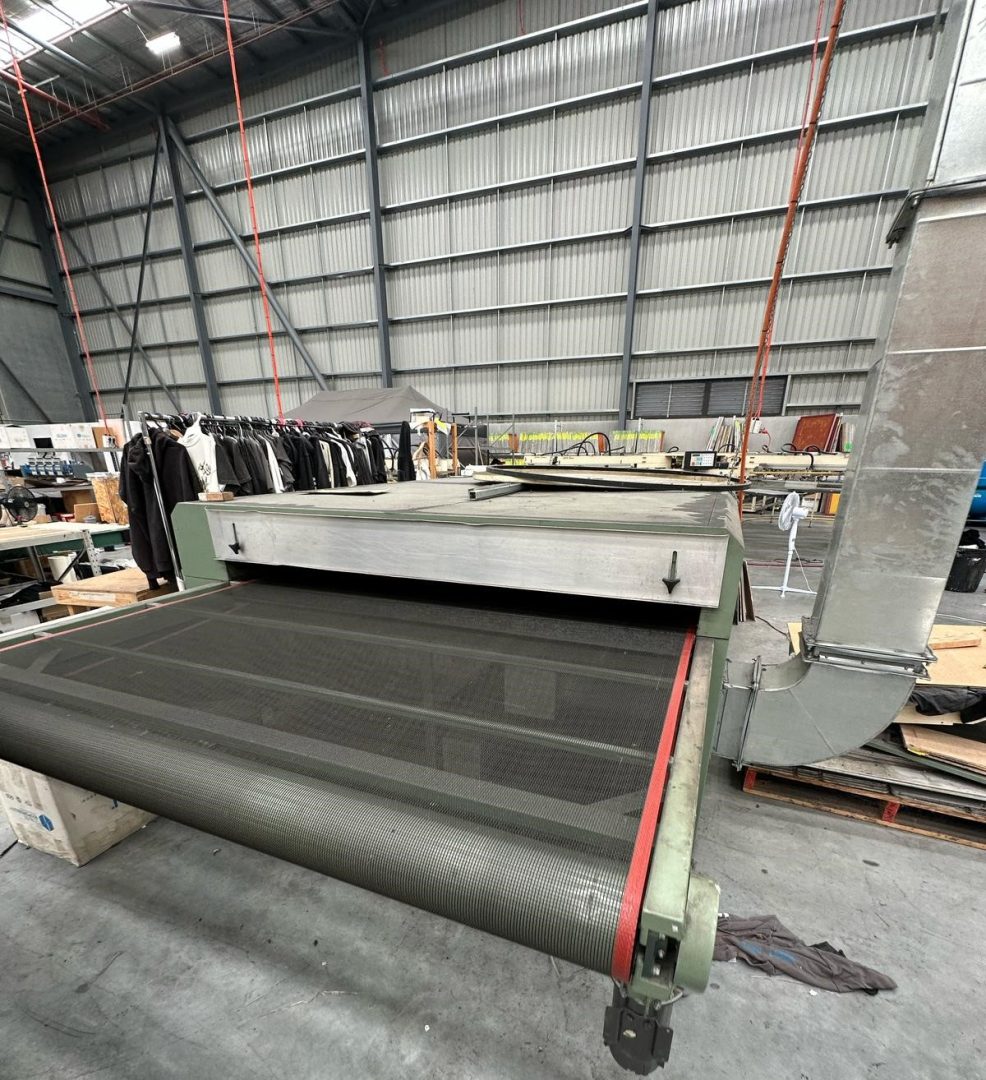

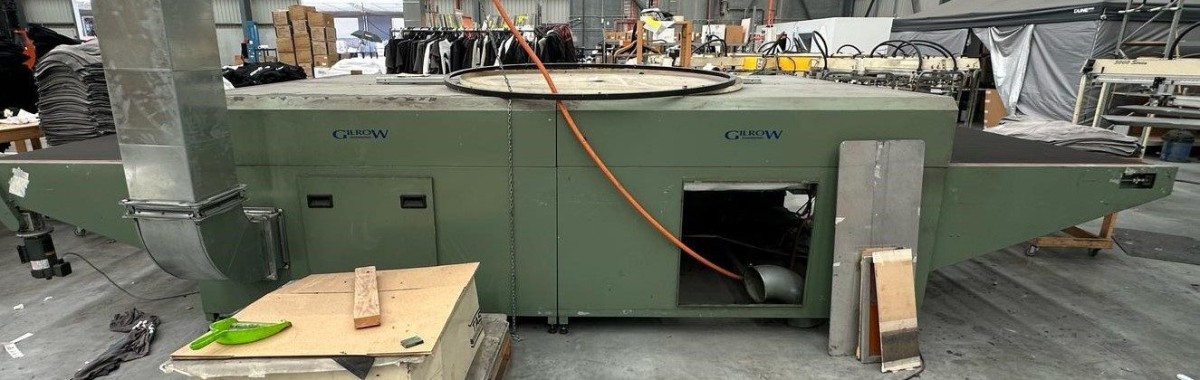

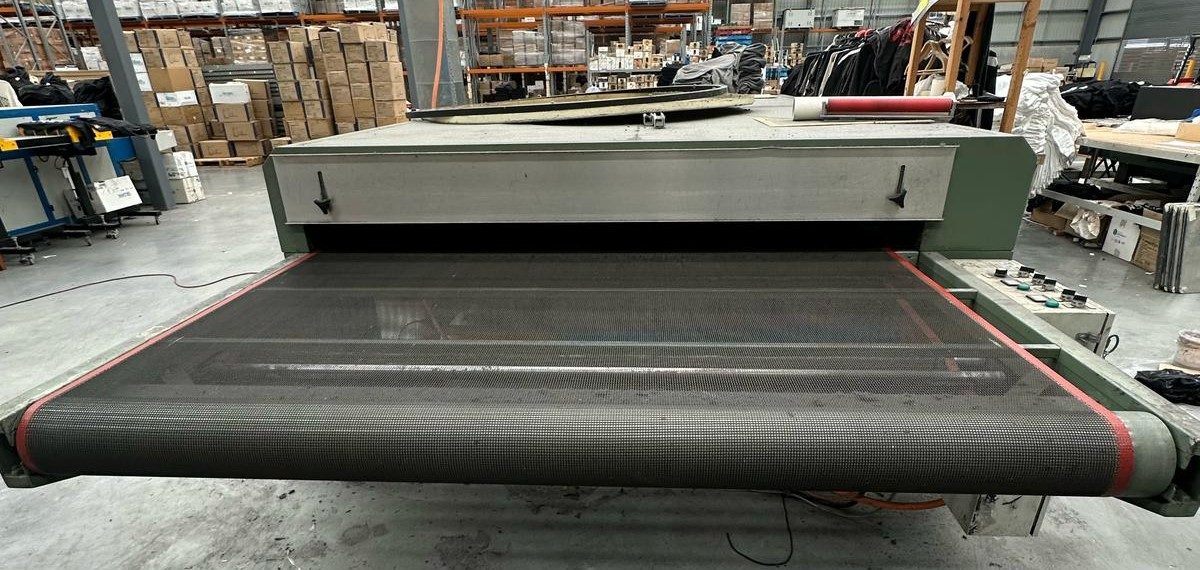

Used Gilrow EODJ6.4 Tunnel Dryer

In good working condition

Great Textile Dryer

Serial Number: GD1153
6.4m overall length , 4m tunnel, 2.0m wide belt

Needs new belt (approx cost of new belt $2,500+gst)

Located at vendors premises in Sydney
