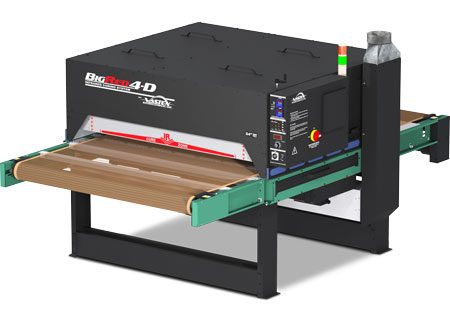

Vastex BigRed 4D Series Infrared Dryers

The Big Red 4D Tunnel Dryers offer a High Performance Infrared Dryer that will cure at Ultra-High Rates.


BigRed V4 Series dryers are the biggest, most powerful dryers for high-production commercial shops. These machines can do it all!


Available in 30″ (76 cm) or 54″ (137 cm) belt widths with a 137 cm long heating chamber. Featuring dual heating zones and four infrared heaters, these powerhouse tunnel dryers can cure digital white ink, plastisol ink, water-based ink and discharge at speed!


Safer for your shop, the Big Red 4D Dryers ensure you have clean air and no recycled fumes!


The BigRed Dryers have two independent air systems: a 600 cfm exhaust which draws down through the belt and removes moisture and fumes completely, and a 400 cfm “make-up air” system that filters lint and contaminates from air entering the heating chamber.


In addition, these models feature dual temperature controls for the four heaters, and a unique cooling bed at the exit that accelerates garment cooling for quick removal. Other safety features include a “cool down mode” for powering down, and a light tower to easily monitor dryer status.


Super- Fast Curing Rates*: BR-4D-30 BR-4D-54
Plastisol @25 secs 475/hr 950
Water-based/Discharge 216/hr 432
Digital White Ink @2.5 min 72/hr 144
Digital White Ink @3 min 60/hr 120


The Big Red 4D Series Tunnel Dryers offer accurate temperature controller featuring Digital PID with Fuzzy logic – the most advanced in the industry. You can easily raise or lower all heating chamber simultaneously to 5-17.7cm making it ideal for bulky garments or hat curing.


The Convenient Digital belt speed voltmeter provides ease with more accurate results.


Like, the rest of the Vastex Tunnel Dryers, the BigRed 4D Series dryers are expandable to suit your shop requirements.


Belt Width (max garment width): 30″ (76 cm) or 54″ (137 cm)

Heater Width: 24″ (61 cm) or 48″ (122 cm)

Contact Leapfrog Machinery to get a quote on maximising your production with this compact DTG tunnel dryer.


  • Add heat chambers @ 4.5′ (137cm) long
  • Belt extensions, front or rear, 18″ (46 cm) long
  • 3 Phase, 208, 380, 480 voltages available
  • Exhaust Hood, provides extra fume extraction
  • Hat support rail
  • Locking casters for easy mobility
  • Heavy duty motor drive for conveyor belts


*Production speeds are estimates and will vary depending on ink manufacturer, humidity of shop and other variables
